LED-Strobe-type Beacon - K-LED Nano Nano - 12/24V - yellow (amber)

Hella Part no. A25-006297 Previously PT/066146011

LED-Strobe-type Beacon - K-LED Nano Nano - 12/24V - yellow (amber)

Shop rating 4.3, from 4 customer reviews of Agri Lighting
€63.95

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • Ireland delivery €35.95, free on orders over €150. Delivery and customs charges

About this tractor beacon

LED-Strobe-type Beacon - K-LED Nano Nano - 12/24V - yellow (amber) is a Hella tractor beacon for 12 V / 24 V electrical systems.

It is a universal fitting for tractors, trailers, telehandlers and other farm machinery, sold as a single unit unless the specification states a pack quantity.

The Agri Lighting part number is A25-006297 (previously PT/066146011), and it replaces or is equivalent to 2281056, 26825, 2XD 066 146-011, 3277791, 3J03739951, 5050022302 and 8 more.

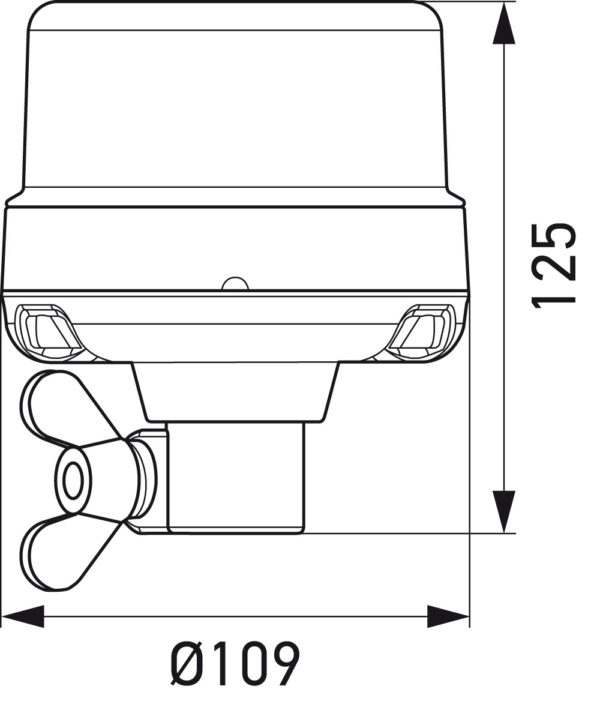

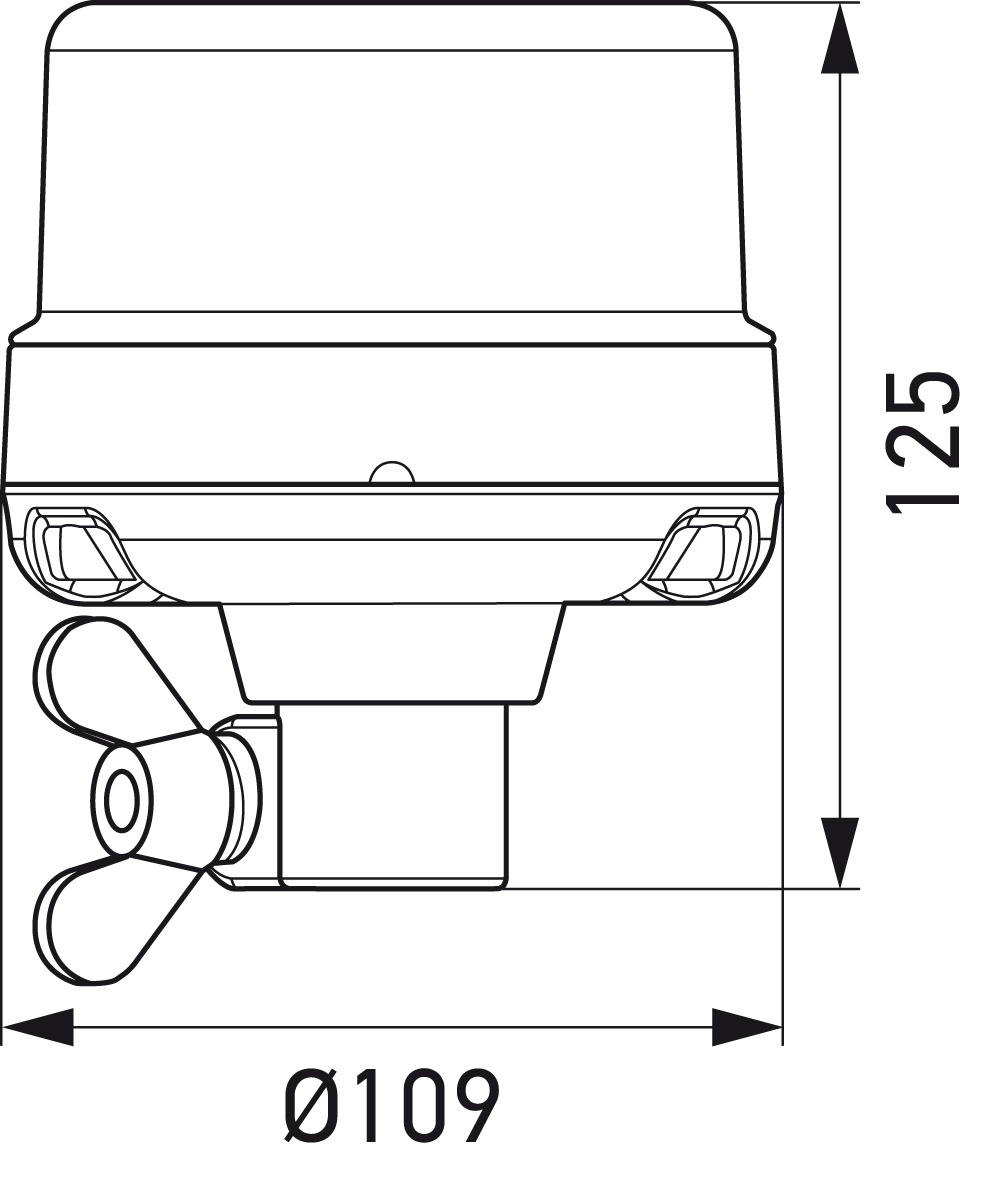

Despite its compact dimensions, the K-LED Nano gives out an above-average light intensity. HELLA’s smallest homologated beacon to date generates a long-range, amber warning signal by means of flashing light. The standard version for fixed mounting is characterised by a slightly curved base which, with a bolt circle diameter of 130 mm, stays true to the usual HELLA mounting points. Further mounting options deviating from this standard are possible (e.g. a bolt circle diameter of 43 mm or 85 mm). In addition, a variant with flexible pipe socket mounting is also available. The shock-absorbing and vibration-damping base briefly tilts the beacon by up to 45° and cushions even strong impacts. Thanks to this option and the complete sealing of the beacon, the K-LED Nano can therefore also be used both in vibration-intensive environments and also in dusty ones. As a Fit&Forget solution, following installation the beacon turns into a reliable and long-lasting vehicle component.

Very compact design with high light intensity

Vibration and impact-resistant

High degree of tightness thanks to complete sealing

Lamp Type: LED - Number of LEDs: 16 - Power consumption: 19W

With flashing warning signal - Lens Colour: Yellow

Registration Type: ADR/GGVS/ECE - fulfils ECE norm: R10/R65/TA1 - fulfils SAE norm: J845 Class 1 - Prot.type (IP Code): IP6K7/IP6K9K

Housing material: EPDM (ethylene propylene diene Monomer (M-class) rubber) - Housing Colour: Black - Diffusing Lens Material: PC (Polycarbonate)

Specifications

Voltage12 V / 24 V
RangeK-LED Nano Nano / yellow (amber)
Weight450 g
Part numberA25-006297
BrandHella

Part numbers

Our part number for this item is A25-006297. It was previously listed as PT/066146011, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 2281056
  • 26825
  • 2XD 066 146-011
  • 3277791
  • 3J03739951
  • 5050022302
  • 93001890
  • ACX4222570
  • AXE92636
  • B9409228
  • BEM2148
  • BEM2148V00
  • NA305
  • ZE0000022100
