Direction Indicator - Halogen - 12/24V

Hella Part no. A25-000543 Previously PT/003184051

Direction Indicator - Halogen - 12/24V

Shop rating 4.3, from 4 customer reviews of Agri Lighting
€26.95

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • Ireland delivery €8.95, free on orders over €150. Delivery and customs charges

About this indicator lamp

Direction Indicator - Halogen - 12/24V is a Hella indicator lamp for 12 V / 24 V electrical systems.

It is listed as a replacement part for Kubota, Renault and Caterpillar machines, sold as a single unit unless the specification states a pack quantity. Check the part number against the lamp on the machine before ordering.

The Agri Lighting part number is A25-000543 (previously PT/003184051), and it replaces or is equivalent to 1020402060, 1091, 1189024, 1489041, 2BE 003 184-051, 4187828A and 11 more.

Kubota, Renault and Caterpillar are named to show which machines this part fits. It is supplied as a replacement part, and Agri Lighting is not affiliated with Kubota, Renault and Caterpillar.

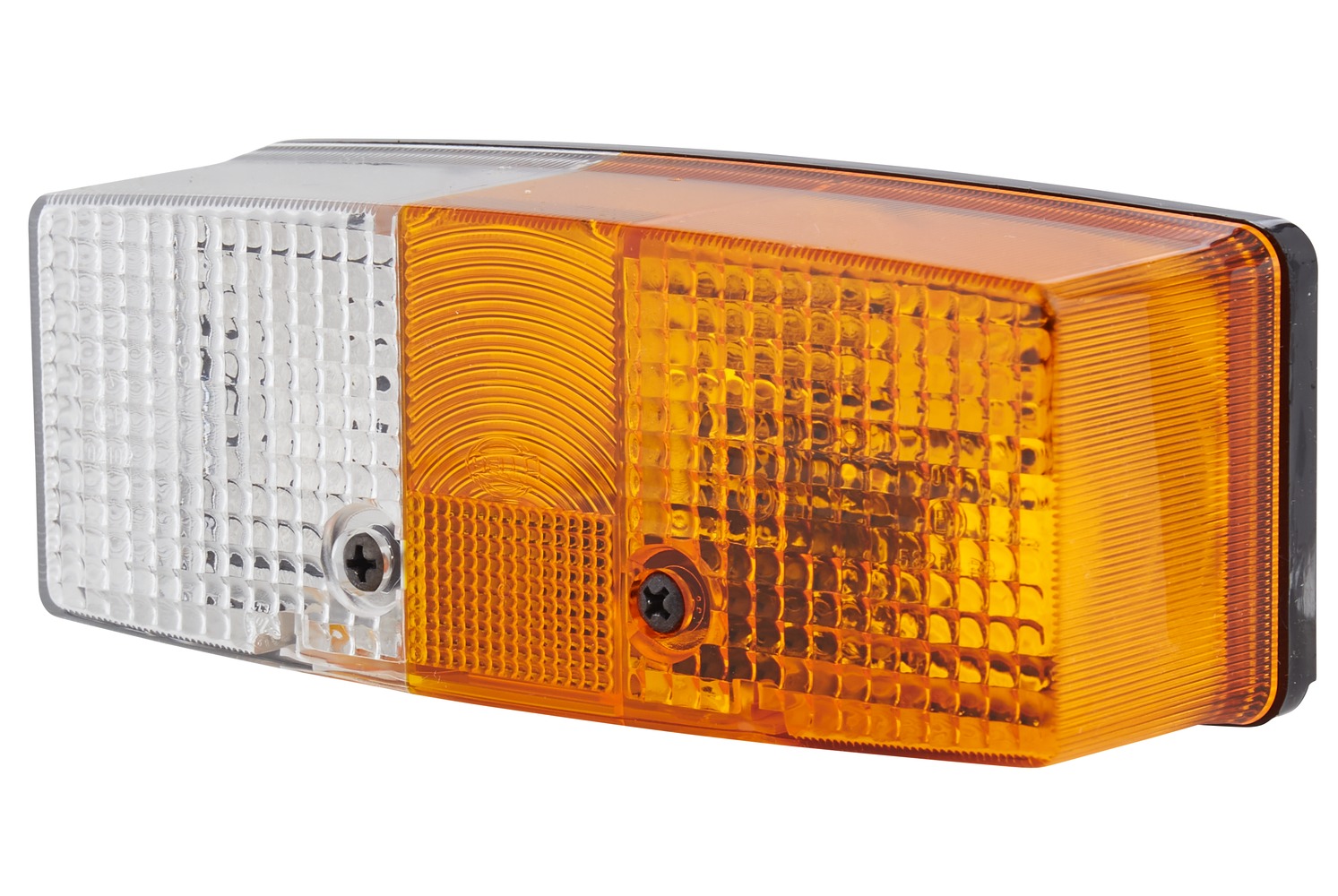

Front Combination Light (Halogen), 12/24V, LH, Straight. E Approved: Yes IP Rating Lens Colour: Amber / Clear Function: 2, Position / Indicator. Specifications: Bulb Supplied No; Connection Type Spade Terminal; Dip Straight; E Approved Yes; ECE Rating Reg 6, Reg 7; Fixing Screw; Function 2, Position / Indicator; Housing Material Various Plastic Compounds; Lens Colour Amber / Clear; Lens Material Polycarbonate; Light source Halogen; Overall height (ins) 2-33/64; Overall height (mm) 64; Overall length (ins) 6-7/32; Overall length (mm) 158; Overall width (ins) 2-1/64; Overall width (mm) 51; RH or LH Fitment LH; RoHS Approved No; SAE Approved No; Shape Rectangular; Volts 12/24V. Weight 0.21 kg. Equivalent to Kubota 00697-22009, TA04934213, TA04934240, TA049-34123; Renault 7701366011; Caterpillar 118-9024.

Specifications

Bulb typeHalogen
Voltage12 V / 24 V
Weight210 g
Part numberA25-000543
BrandHella

Part numbers

Our part number for this item is A25-000543. It was previously listed as PT/003184051, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 1020402060
  • 1091
  • 1189024
  • 1489041
  • 2BE 003 184-051
  • 4187828A
  • 56137
  • 5751155
  • 69722009
  • 7701366011
  • 7742410
  • TA04934123
  • TA04934213
  • TA04934214
  • TA04934240
  • TA04934243
  • U56137

Delivery and returns

This item is ordered in from our supplier. It usually reaches us the next working day and is dispatched the day it arrives, with tracking sent by email. Delivery to Ireland for this item is €8.95, and it is free on orders over €150. Orders ship from our UK warehouse, so import VAT, any customs duty and the courier’s clearance fee are not included in our prices and are paid to the courier on delivery. Delivery and import charges explained.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
