Work Light

Part no. A25-006736 Previously PT/96-76579827T

Work Light

Shop rating 4.3, from 4 customer reviews of Agri Lighting
€51.95

Available to order

  • Ordered in from our supplier
    It usually reaches us the next working day and is dispatched the day it arrives
  • Ireland delivery €35.95, free on orders over €150. Delivery and customs charges

About this work light

Work Light is a work light.

It is listed as a replacement part for John Deere, Case IH, New Holland, Massey Ferguson, McCormick and Ford machines, sold as a single unit unless the specification states a pack quantity. Check the part number against the lamp on the machine before ordering.

The Agri Lighting part number is A25-006736 (previously PT/96-76579827T), and it replaces or is equivalent to 178345A1, 92263C1, 9827657, RE48990.

John Deere, Case IH, New Holland, Massey Ferguson, McCormick and Ford are named to show which machines this part fits. It is supplied as a replacement part, and Agri Lighting is not affiliated with John Deere, Case IH, New Holland, Massey Ferguson, McCormick and Ford.

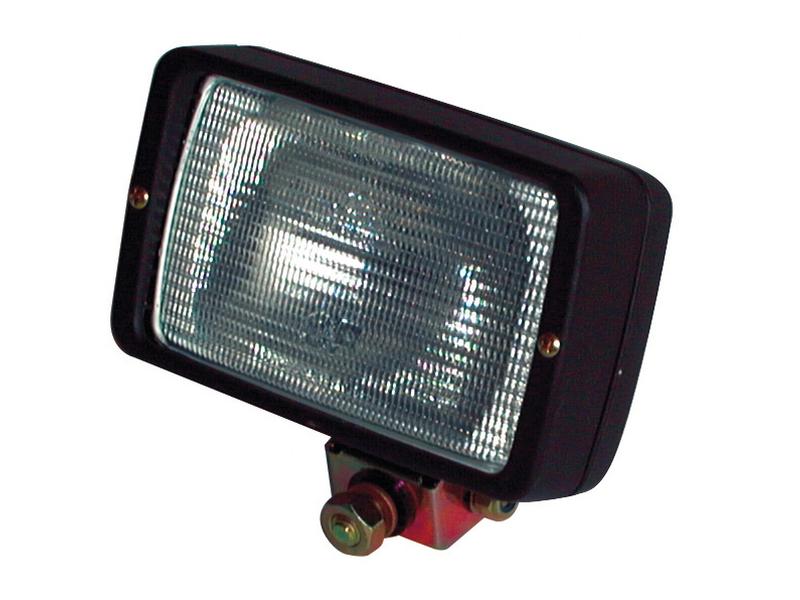

Work Light Rectangular 12-24V RH & LH. Overall height 128mm Overall length 154mm Overall width 77mm IP Rating: IP5K4K Connection Type: Spade Terminal. Specifications: Bulb Supplied No; Connection Type Spade Terminal; E Approved No; Fixing Bolt on; Housing Material Various Plastic Compounds; IP Rating IP5K4K; Lens Colour Clear; Lens Material Glass; Light source Halogen; Overall height (ins) 5-3/64; Overall height (mm) 128; Overall length (ins) 6-1/16; Overall length (mm) 154; Overall width (ins) 3-1/32; Overall width (mm) 77; RH or LH Fitment RH & LH; RoHS Approved Yes; SAE Approved No; Shape Rectangular; Volts 12-24V. Weight 0.52 kg. Equivalent to McCormick 178345A1, 92263C1; Case IH 178345A1, 180097A1, 1987487C1, 305256A1, 92263C1, 1983210C1, 275335A1, 87773385; John Deere RE48990; Ford New Holland 178345A1; Massey Ferguson 3788157M91, 4272783M91, 4272781M92. Fits Case IH MX100, MX110, MX120, MX135, MX150, MX170, MX100C, MX80C, MX90C, CX100, CX50, CX60, CX70, CX80, CX90, MX180, MX200, MX210, MX215, MX220, MX230, MX240, MX255, MX270, MX285, MAGNUM 225, MAGNUM 235, MAGNUM 250, MAGNUM 255, MAGNUM 260, MAGNUM 280, MAGNUM 290, MAGNUM 310, MAGNUM 315, MAGNUM 335, MAGNUM 340, MAGNUM 370, MAGNUM 380, 5120, 5130 and others; Ford New Holland T8010, T8020, T8030, T8040, T8050, TG210, TG230, TG255, TG285; John Deere 6020, 6020SE, 6120, 6120SE, 6220, 6220SE, 6320, 6320SE, 6420, 6520, 6520SE, 6620, 6620SE, 6100, 6100SE, 6200, 6200SE, 6300, 6300E, 6400, 6400SE, 6506, 6600, 6800, 6900, 6900S, 6100D, 6010, 6010SE, 6110, 6110SE, 6210, 6210SE, 6310, 6310SE, 6410, 6410SE, 6510, 6510SE, 6610 and others; Massey Ferguson 7465, 7475, 7480, 7485, 7485 DYNA VT/DYNA STEP, 7490, 7490 DYNA VT/DYNA STEP, 7495, 7495 DYNA VT/DYNA STEP, 5410, 5420, 5425, 5430, 5435, 5440, 5445, 5450, 5455, 5460, 5460SA, 5465, 5470, 5470 SA, 5470SA, 5475, 5475 SA, 5480, 6445, 6455, 6460, 6465, 6470, 6475, 6480, 6485, 6490, 6495, 6497; McCormick CX100, CX50, CX60, CX70, CX80, CX90; Merlo VARIOUS.

Specifications

Weight520 g
Part numberA25-006736

Part numbers

Our part number for this item is A25-006736. It was previously listed as PT/96-76579827T, and either number finds it in the search.

This part replaces or is equivalent to the following numbers. Use them to match an existing lamp or a dealer quote.

  • 178345A1
  • 92263C1
  • 9827657
  • RE48990

Delivery and returns

This item is ordered in from our supplier. It usually reaches us the next working day and is dispatched the day it arrives, with tracking sent by email. Delivery to Ireland for this item is €35.95, and it is free on orders over €150. Orders ship from our UK warehouse, so import VAT, any customs duty and the courier’s clearance fee are not included in our prices and are paid to the courier on delivery. Delivery and import charges explained.

Unused items in their original packaging can be returned within 30 days of delivery; you pay the return postage and there is no restocking fee on stock items. Every part carries a 12-month warranty, and for a faulty or incorrectly supplied item we send a prepaid return label and replace or refund it. Full details are on the delivery and returns page.
