Tractor Headlights in Ireland: H4 vs H7, LED Legality and Upgrades

A tractor headlight is the forward-facing road lamp that gives a dipped and main beam for night driving. Most tractors use halogen H4 or H7 bulbs or sealed LED headlamp units. In Ireland headlamps are part of the obligatory lighting system on every tractor and self-propelled agricultural machine, and RSA guidance is that LED bulbs are legal only if they are type-approved, fitted to a compatible vehicle and do not dazzle. A plug-in LED bulb in a halogen headlamp does not meet that test unless it is an approved LED replacement for that bulb type, and none is approved for H4 or H7 at the time of writing.

This guide covers what Irish law requires for tractor headlights, the main headlamp types, the difference between H4 and H7 bulbs, whether LED headlight bulbs are legal in Ireland, approved LED headlamp units, fitment, upgrading, alignment and maintenance.

What Tractor Headlights Do

A tractor headlight lights the road ahead with a shaped beam. The dipped beam has a sharp cut-off that keeps light out of oncoming drivers’ eyes, and the main beam throws light further down the road when nothing is coming. Tractor headlights have to do this at up to 60 km/h or so on the fastest tractors, and on narrow unlit local roads where the tractor may be the widest thing for miles.

Tractor headlights are not the same as work lights. Headlights face forward and give a controlled road beam. Work lights mount on the cab roof, rear, or sides and throw a wide flood across the working area. Work lights are for the field and the yard; RSA guidance is that they must be switched off before using the public road, where the headlights do the job.

Many tractors have 2 sets of road headlamps: one in the bonnet or grille, and a second set higher up on the cab or front roof. The upper set is there because a front loader, front linkage implement or front weights can block the bonnet lamps. If something on the front of the tractor hides the lower headlamps, switch to the upper set for road work. The RSA also advises lowering front loaders and forks on the road, as raised forks are a dangerous projection.

Irish Law on Tractor Headlights

Vehicle lighting in Ireland is governed by the Road Traffic (Lighting of Vehicles) Regulations 1963 (S.I. No. 189 of 1963), as amended. For tractors, the key change came with S.I. No. 249 of 2014, in force from 1 January 2016. The key points are:

• Who needs them: every agricultural tractor and self-propelled agricultural machine must have headlamps as part of a full lighting system (side lamps, headlamps, rear lamps, stop lamps, indicators, amber beacon and number plate lighting). There is no UK-style speed exemption. The only exemption is for tractors manufactured or first registered before 1 January 1980 used only in daylight (the RSA’s current wording is “30 years ago”).
• When: the system must be fitted and working at all times, not only during lighting-up hours (half an hour after sunset to half an hour before sunrise). RSA guidance also advises dipped headlights during the day on vehicles without daytime running lights.
• Colour: Article 41 allows only white or yellow light to the front.
• Dazzle: Article 48 bans any lamp capable of dazzling other road users or misleading other traffic.
• Approval: RSA guidance advises replacing lamps like for like with type-approved units showing an E or e mark. New tractors are type-approved under EU Regulation 167/2013, with lighting installation set by Regulation (EU) 2015/208, Annex XII.

Older tractors covered by the daylight exemption that do have headlamps fitted must keep them working and must not dazzle. For beam aim, follow the angle marked on the tractor or in the handbook. Our guide to headlamp alignment for tractors shows how to set it.

Approval Regulations for Headlamps

Headlamps are approved to UNECE regulations. Halogen and LED headlamps with an asymmetrical dipped beam were approved to R112, xenon headlamps to R98, and symmetrical-beam headlamps to R113. Those regulations have been consolidated into R149, which covers new approvals. A headlamp marked with one of these numbers and an E or e mark, plus the function code (for example HCR for a halogen dipped and main beam), has been tested for road use. Ireland’s own approval number is 24, but marks from any EU or UNECE country are valid here.

Check the traffic symbol too. Ireland drives on the left, like the UK. A headlamp made for left-hand traffic carries an arrow in its marking. A headlamp with no arrow is made for right-hand traffic, such as a lamp from a continental-spec tractor, and throws its dipped beam towards oncoming drivers on Irish roads.

Types of Tractor Headlight

Tractor headlights fall into 3 main designs: sealed beam units, composite headlamps with a replaceable bulb, and complete LED headlamp units.

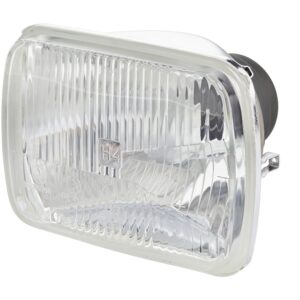

Sealed Beam Headlights

A sealed beam headlight is a single unit in which the filament, reflector and lens are permanently bonded together. When the filament fails, the whole unit is replaced. Sealed beams were common on older tractors and still turn up on classic and vintage machines. The common sizes are 5.75 inch round (about 146 mm) and 7 inch round (about 178 mm), plus some rectangular formats.

Many sealed beam sizes are also available as semi-sealed units: a glass lens and reflector that take a replaceable H4 bulb, which is cheaper to run and brighter than an old sealed beam.

Composite Headlights (Replaceable Bulb)

A composite headlight has a reflector and lens housing with a separate bulb that fits from the back. Most tractors from the 1990s onwards use this design, typically with H4 bulbs (dipped and main in one bulb) or H7 bulbs (one bulb per beam). A blown bulb is a quick, cheap replacement rather than a whole new lamp.

LED Headlamp Units

An LED headlamp unit is a complete lamp with LED light sources, optics and lens built in as one sealed assembly. Approved LED headlamp units are made in the common round and rectangular sizes as direct replacements for sealed beam and composite headlamps. Recent tractors increasingly leave the factory with LED headlamps as standard.

H4 vs H7 Tractor Headlight Bulbs

H4 and H7 are the 2 halogen bulbs most tractor headlights use, and they are not interchangeable. An H4 is a twin-filament bulb that gives both dipped and main beam. An H7 is a single-filament bulb that gives one beam, so a headlamp built for H7 uses 1 bulb for dipped beam and a separate bulb or headlamp section for main beam.

Specification	H4	H7
Filaments	2 (dipped and main)	1
Base	P43t	PX26d
Terminals	3	2
Standard 12V rating	60/55W	55W
Standard 24V rating	75/70W	70W
Typical 12V output (approx)	1,650 lm main / 1,000 lm dipped	1,500 lm
Typical tractor use	Combined dipped and main headlamps, semi-sealed round units	Separate dipped and main beam reflectors or projector headlamps

The quickest check is the back of the bulb: 3 flat terminals means H4, 2 terminals means H7. Always match the voltage, because a 12V bulb in a 24V system fails almost straight away. For the full detail on each bulb, read our guides to H4 bulbs and H7 bulbs, or the side-by-side H4 vs H7 comparison.

Higher-Output Halogen Bulbs

If you want more light from a halogen headlamp without changing the lamp, a higher-output halogen H4 or H7 is the legal route. These run at the standard wattage and carry approval as a filament light source, so they keep the headlamp’s approval intact. They often trade some bulb life for the extra output.

Are LED Headlight Bulbs Legal in Ireland

Ordinary LED replacement bulbs fitted into halogen headlamps are not a safe bet for road use in Ireland. RSA guidance says retrofit HID or LED bulbs are not always compatible with the vehicle or headlamp, and that LED bulbs are legal only if they are type-approved, fitted to a compatible vehicle, and the beam does not dazzle. A halogen headlamp is approved as a lamp designed for a specific filament bulb category, such as H4 or H7. Putting an LED bulb in it changes where the light comes from inside the reflector, and the beam pattern, cut-off and glare are no longer what the headlamp was approved with.

The RSA lists three ways a car fails the NCT on this point: an approved kit on an incompatible vehicle, an unapproved kit, or HID bulbs retrofitted into ordinary halogen headlamps. Factory HID systems normally come with self-levelling and headlamp cleaning, which a retrofit bulb does not add. Complete replacement headlamp units built and approved with LED light sources are a different matter and are covered below.

What That Means for Tractors

Ordinary tractors with a design speed of 40 km/h or less do not go through a periodic test in Ireland, so a farm tractor will not be failed at a test centre for an LED bulb. The road law still applies every time it is on the road. LED bulbs in halogen reflectors commonly scatter light above the cut-off and dazzle oncoming drivers, which breaks Article 48 of the 1963 Regulations. Fast tractors over 40 km/h used for non-exempt work need a CVRT test, where lamp faults are failure items.

What About LED Bulbs Sold as “Road Legal”

UNECE has started approving LED substitute light sources (LEDr) for a small number of filament bulb categories under Regulation 37. At the time of writing, no LEDr bulb is approved for H4 or H7. Treat any H4 or H7 LED bulb labelled “road legal” or “E-marked” with suspicion: an E-mark on an LED bulb is often an EMC (Regulation 10) approval, which covers radio interference, not the light.

Approved LED Headlamp Units

The legal way to get LED headlights on a tractor is a complete LED headlamp unit approved as a headlamp. The lamp, the LEDs and the optics are tested together, so the beam pattern and cut-off are part of the approval.

When choosing one, check:

• The approval mark: a circle E (or rectangle e) with a country number and a headlamp approval to R112 or R149 (or R113 for symmetrical beams), with function codes such as HC (dipped), HR (main) or HCR (both).
• The traffic arrow: it must be suitable for left-hand traffic, as driven in Ireland.
• The size and fixing: 7 inch round, 5.75 inch round and common rectangular sizes are made as drop-in replacements.
• The connector: many LED units use an H4-style 3-pin plug so they connect to the original loom.
• The voltage: many LED units are multi-voltage for 12V and 24V systems.
• EMC: an R10 approval helps avoid interference with radios and GPS guidance.

Browse LED tractor headlights for complete LED units, or halogen tractor headlights for replacement halogen headlamps and semi-sealed units. Delivery to Ireland is free on orders over €150.

Halogen, LED and Xenon Compared

Halogen, LED and xenon (HID) are the 3 headlight technologies found on tractors. The table compares them as complete headlamp systems.

Specification	Halogen	LED headlamp unit	Xenon (HID)
Light source output	About 1,000 lm dipped (H4), 1,500 lm (H7)	Varies by unit; check the maker’s data	About 3,200 lm (D-series burner)
Power draw	55W to 60W per bulb at 12V	Typically well below halogen for similar light	About 35W per burner plus ballast
Light colour	Warm white	Cool white	Cool white
Warm-up	Instant	Instant	A few seconds to full output
Vibration resistance	Low (filament can break)	High (no filament)	Moderate (no filament, ballast is an extra part)
Repair	Change the bulb	Replace the whole unit	Change burner or ballast

Which Technology Suits Tractor Use Best

Approved LED headlamp units give the best combination of output, life and durability for agricultural use. No filament means no failures from rough-ground vibration, which is the main reason halogen bulbs fail early on tractors. The lower current draw also helps on older tractors with small alternators.

Halogen remains the cheapest to buy and the easiest to repair at the roadside, and a higher-output halogen bulb in a good reflector is a sound choice for a tractor that does little night road work. Xenon retrofits were popular for a while, but the RSA singles out HID bulbs retrofitted into halogen headlamps as an NCT failure, and approved LED units have largely taken over.

Fitment and Compatibility

Fitting the right tractor headlight means matching 3 things: housing size, connector and beam pattern.

Housing Size

Measure the existing headlamp across its face. The common sizes are 7 inch round (178 mm) and 5.75 inch round (146 mm), plus rectangular formats that vary by make. Many tractors use headlamps specific to the bonnet or cab design, so check the part number on the back of the old lamp or in the parts book.

Connector

H4 headlamps use a 3-terminal plug (dipped, main and earth). H7 headlamps use a 2-terminal plug per bulb. Some tractors use sealed connectors such as Deutsch or Superseal on the loom side. Photograph the connector before ordering.

Beam Pattern

A road headlamp must produce a dipped beam with a defined cut-off, set for left-hand traffic. An LED lamp with a flood or spot pattern and no cut-off is a work lamp or driving lamp, not a headlamp, whatever its output. On the road, beam control matters more than lumens.

Make-Specific Headlamps

Headlamp shape and fixings vary between makes, series and model years, and even within a series. Always confirm the part against the specific tractor. For John Deere owners, browse our John Deere tractor headlights for make-specific replacements. For fitment advice, call +44 1522 440522 or email [email protected].

How to Upgrade Tractor Headlights to LED

Upgrading to LED means replacing the headlamp, not the bulb. The job takes 30 minutes to 2 hours depending on access and whether an adapter loom is needed.

Step 1: Identify the Current Headlamp

Note the shape, size, whether it is a sealed beam or takes a bulb (and which bulb), and any part number. Check whether the tractor has bonnet headlamps, roof headlamps or both.

Step 2: Check the Connector

Look at the plug on the back of the headlamp. Common types are an H4 3-terminal plug, an H7 2-terminal plug, a sealed beam 3-terminal plug or a sealed connector on a flying lead.

Step 3: Choose an Approved LED Headlamp Unit

Pick a unit that matches the size and connector and carries a headlamp approval (R112 or R149) with a left-hand traffic marking. Do not use an LED bulb in the old halogen headlamp.

Step 4: Isolate the Battery

Disconnect the battery or use the isolator before touching headlamp wiring.

Step 5: Remove the Old Headlamp

Undo the retaining ring or fixing screws, being careful not to disturb the aiming screws if you can avoid it, and unplug the connector.

Step 6: Fit the New Unit

Fit the LED unit into the bracket with the original or supplied fixings. Connect the plug. Where an adapter is needed, use sealed connectors and check polarity: LED units, unlike bulbs, can be polarity-sensitive.

Step 7: Test

Reconnect the battery and check dipped beam, main beam and the main beam tell-tale. If the LED unit flickers, check the earth and the switch or relay feed. Some older tractors with dash bulb-failure warnings may need the LED unit’s recommended adapter.

Step 8: Align the Beam

Set the beam on level ground against a wall so the dipped cut-off sits below the headlamp centre height by the correct amount. A new lamp almost always needs aiming, and a badly aimed lamp can dazzle, which the Irish regulations do not allow.

Common Tractor Headlight Faults

Most tractor headlight faults come down to a bulb, a feed, or an earth. Work from the simplest check upwards.

• One headlight out: usually the bulb. On an H4, check both filaments, because dipped can fail while main still works. If the bulb is good, check the plug for burnt or corroded terminals and the earth wire.
• Both dipped beams out: a shared fault, such as the dipped beam fuse, the headlamp relay or the dip switch on the column stalk. Check the fuse first.
• Main beam not working: check the main beam fuse and relay, then the switch. A working tell-tale with no main beam points to the feed between the relay and the lamps.
• Dim or yellow lights: voltage drop from a poor earth, corroded connectors or a weak charging system. Measure the voltage at the headlamp plug with the engine running and compare it with the battery.
• Melted H4 connector: caused by a loose or corroded terminal heating up under load. Replace the connector and the bulb, not just the bulb.
• Bulbs blowing repeatedly: often high charging voltage, vibration from a loose mounting, or skin oil on the glass.

Tractor Headlight Maintenance

Regular headlamp maintenance keeps the beam bright and legal. Mud, dust, spray residue and vibration all take their toll.

Clean the lenses regularly. Mud on the lens cuts output dramatically, especially after a day drawing slurry or silage on wet roads. Use a soft cloth and mild soapy water. Avoid abrasive cleaners and scouring pads, which scratch plastic lenses and cause permanent hazing.

Check alignment after heavy work. Headlamps can be knocked out of aim by heavy cultivation work, rough tracks or a front loader. Check at the start of each season.

Inspect connectors for corrosion. Green or white deposits on terminals increase resistance, dim the lamp and generate heat, which can melt an H4 connector. Clean with contact cleaner and use dielectric grease.

Replace rubber boots and seals. The rubber boot behind a composite headlamp keeps water out. A split or missing boot lets condensation form inside the lens, which scatters the beam and tarnishes the reflector.

Handle halogen bulbs by the base. Skin oils on the glass create hot spots that shorten bulb life. If you touch the glass, clean it with isopropyl alcohol before fitting.

Replace both halogen bulbs together. When one bulb fails, the other is usually near the end of its life, and matched bulbs give an even beam.

Frequently asked questions

Are LED headlight bulbs legal in Ireland?

Only in limited cases. RSA guidance says LED bulbs are legal only if type-approved, fitted to a compatible vehicle and not dazzling, and an unapproved kit or an approved kit on an incompatible vehicle fails the NCT. No LED replacement bulb is approved for H4 or H7 at the time of writing. A complete LED headlamp unit approved as a headlamp is legal.

Is an H4 LED bulb legal on a tractor?

An H4 LED bulb in a halogen headlamp is not an approved combination for road use. Ordinary farm tractors have no periodic test in Ireland, but they must be roadworthy and must not dazzle, and LED bulbs in halogen reflectors often do. Fit an approved LED headlamp unit instead.

Which bulb does a tractor headlight use?

Most tractor headlights with replaceable bulbs use an H4 (twin filament, dipped and main) or an H7 (single filament, one beam). Check the old bulb: 3 terminals means H4, 2 means H7, and match the voltage.

Can I swap H7 bulbs for H4?

No. H4 and H7 bulbs have different bases (P43t and PX26d) and different numbers of filaments, and the headlamp reflector is designed around one or the other.

Why does my tractor have two sets of headlights?

Many tractors have headlamps in the bonnet and a second set on the cab or front roof. The upper set is for road use when a front loader or front-mounted implement blocks the bonnet lamps.
