Agricultural Trailer Lights: Irish Rules, Kits and LED Upgrades

An agricultural trailer needs a complete set of road-legal lights any time it travels on the public road behind a tractor, telehandler, or jeep. In Ireland the minimum kit for an agricultural trailer covers side (position) lamps, rear lamps, stop lamps, direction indicators and number plate lighting. Longer combinations also need side marker lamps, and heavier trailers need reflective markings. This guide sets out the Irish legal requirements, the lighting kit for each common trailer type, the role of lighting boards, the difference between 7-pin and 13-pin plugs, and the LED upgrade routes that most farms now follow.

Irish Legal Requirements for Agricultural Trailer Lighting

Vehicle lighting in Ireland is governed by the Road Traffic (Lighting of Vehicles) Regulations 1963 (S.I. No. 189 of 1963), as amended. The big change for farm trailers came with the Road Traffic (Lighting of Vehicles) (Amendment) Regulations 2014 (S.I. No. 249 of 2014), in force since 1 January 2016, part of the package the RSA calls the “Revised Standards for Agricultural Vehicles”. The rules apply whenever the trailer is on a public road, including short hops along a county road between fields or farm yards.

Since 2016 agricultural trailers and interchangeable towed equipment must have the following lamps. The tractor itself must have its full lighting system, including the amber beacon, fitted and working at all times on the road, not just during lighting-up hours. The RSA guide to lighting and visibility laws for agricultural vehicles sets out the same rules in plain English.

Component	Required on	Position
Side lamps (front position lamps)	All agricultural trailers and interchangeable towed equipment	Front, both sides, white
Rear lamps (tail)	All agricultural trailers and interchangeable towed equipment	Rear, both sides, red
Stop (brake) lamps	All agricultural trailers and interchangeable towed equipment	Rear, both sides, red
Direction indicators	All agricultural trailers and interchangeable towed equipment	Rear, both sides, amber
Number plate lighting (identification mark lighting)	All trailers (only vintage trailers are exempt)	Rear, white light on plate
Rear reflectors	Standard on trailers	Rear, both sides, red (triangular on trailers)
Side marker lamps	Trailer in a tractor and trailer combination over 10 m long	Side, amber (RSA guidance mentions the right-hand side)
Rear reflective markings	Agricultural trailers over 3,500 kg design gross vehicle weight	Rear
Side reflective markings	Trailers over 3,500 kg DGVW in a combination over 10 m	Sides
“LONG VEHICLE” marking	Trailers over 3,500 kg DGVW in a combination over 13 m	Rear
Reversing lamp	Optional; if fitted, white or yellow, only when reversing	Rear

The reflective marking rules do not apply to towed equipment that can carry more than three times its own unladen weight, such as slurry tankers, fertiliser and manure spreaders and grain chaser bins. Trailers made on or after 1 January 2016 must use UN/ECE-compliant marker lamps and markings.

Older trailers manufactured or first registered before 1 January 1980 (or 30+ years old according to current RSA wording) are exempt from the full lighting system if used only in daylight, but any lights that are fitted must work. Check with the RSA if your trailer is close to the cut-off.

Speed matters in Ireland too, but through speed discs rather than lighting classes. Agricultural trailers first registered on or after 1 January 2016 must be plated and carry a speed disc showing their design speed in km/h, and a combination may not go faster than the lowest design speed in it. A trailer with no disc makes the whole combination count as not capable of more than 40 km/h. Agricultural trailers that are not commercial trailers do not need a CVRT test, but they must be roadworthy, lights included.

Missing lamps are enforced by the Gardaí. Using a trailer not equipped with the prescribed lamps and identification mark lighting, or without a prescribed marker lamp, carries a €60 fixed charge.

Twin-axle and tri-axle trailers need the same lamps as single-axle trailers. Where side marker lamps are fitted on a long trailer, space them evenly along its length.

For the full regulatory picture, see Agricultural Trailer Lighting Requirements and our guide to lighting regulations.

Lighting Kit by Trailer Type

Different trailer types need different lighting layouts. The structure of the trailer dictates where lights mount, what extra warning is needed, and which optional lamps add value.

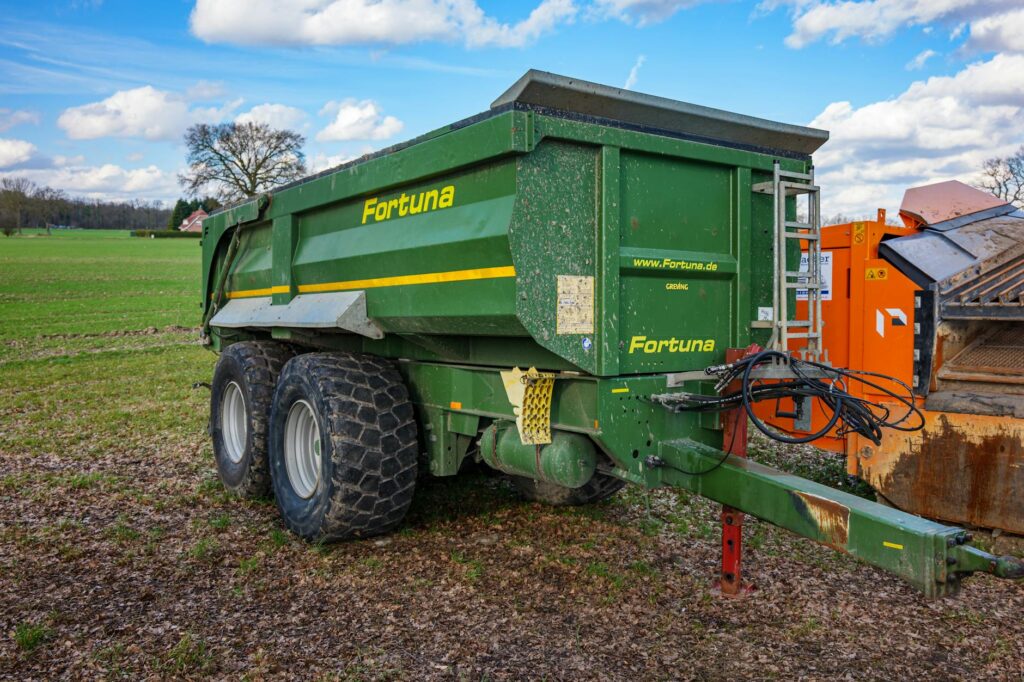

Flatbed and Grain Trailers

A flatbed or grain trailer carries a load above the trailer body and needs all the standard lights. Many owners also fit end outline marker lamps, white at the front and red at the rear, at the highest point of the trailer corners, so the full width stays visible above the load. Irish rules do not set a specific end outline requirement for farm trailers, but these lamps help other drivers judge the width on narrow roads, and the colours follow the Irish rules (white to the front, red to the rear).

Grain trailers add a working consideration. The tipping action moves the rear lights up and back through 50 to 60 degrees during unloading. Permanently mounted lights take the strain through the hinge area, and the cable loom needs slack to accommodate the tip without pulling. Use a flexible loom with a coiled section above the rear axle, not a tight straight run.

Modern grain trailers from Bailey, Larrington, Easterby, and Stewart fit LED rear lights as standard. Older grain trailers with bulb-type rear lamps benefit from an LED upgrade because the tipping action and the dust environment shorten bulb life dramatically.

Livestock Trailers

A livestock trailer carries animals at head and shoulder height, often with internal partitions. Internal lighting becomes important alongside the standard road kit because the operator needs to see inside the trailer when loading, unloading, and checking stock at night.

Add an internal LED strip light or two LED dome lights to the trailer roof, switched from a separate cab control or from a manual switch on the trailer body. Use a sealed IP67 unit because the trailer interior gets washed regularly with high-pressure hose and animal-safe disinfectant.

External lighting on a livestock trailer follows the standard kit. Position the rear lights and reflectors so they are not damaged by ramp opening or by stock loading.

Ifor Williams and Graham Edwards are widely used livestock trailer brands. Spare lighting parts for these trailers are widely available through agricultural and trailer parts retailers.

Slurry, Muck, and Tanker Trailers

Slurry tankers, muck spreaders, and water bowsers carry the lights at the rear of a long, often round-bodied trailer. The rear lights mount on dedicated brackets behind the spreader or tanker, often on a hinged or swing-away frame so they can be lifted clear during PTO work.

Side marker lamps matter on these trailers because a tractor and tanker combination often runs over 10 metres, at which point a side marker lamp is required on the trailer. Even below that length, amber side markers make the long, curved profile easier for other drivers to judge. Slurry tankers and spreaders are exempt from the reflective marking rules for heavy trailers, but not from the lamps.

A slurry or muck tanker that injects rather than spreads needs additional warning lights for the rearward-projecting injector frame. The frame extends 1 to 3 metres behind the tanker during work and on transport, and amber marker lamps at the corners of the frame prevent collisions when reversing or manoeuvring. If the frame hides the tanker’s rear lamps, fit the lamps to the back of the frame or use a lighting board. Under the 1963 Regulations, a load or fitting projecting more than 3 ft 6 in behind the rear lamps needs a rear projecting load lamp during lighting-up hours.

Low-Loaders and Plant Trailers

A low-loader for moving farm plant carries lights at the rear of the bed, often with the lights mounted on side outriggers because the bed is too low for a conventional rear panel. The side outrigger position keeps the lights clear of the loaded plant tracks or wheels and makes them visible behind a wide load.

The maximum width for an agricultural trailer in Ireland is 2.55 m. No Irish equivalent of the detailed UK marker board distances for wide or projecting loads has been published in the regulations or RSA guidance we have checked, so mark wide or projecting machinery clearly and follow the manufacturer’s and RSA guidance. A load projecting more than 16 in beyond the side lamp needs a lateral projecting load lamp during lighting-up hours, and the Rules of the Road says side projections must show white to the front and red to the rear at night.

Trailer Lighting Boards: When to Use Them

A trailer lighting board is a removable panel carrying tail, brake, indicator, number plate, and reflector functions, fitted to the rear of a trailer or implement that does not have permanent lights or whose lights are obscured by the load. In Ireland, towed equipment without lights (balers, sprayers, rakes and similar) needs a lighting board if it obscures the tractor’s own front or rear lamps or reflectors.

Three scenarios call for a lighting board.

The first is an occasional-use trailer. A small farm trailer used twice a year for a short road trip does not justify a permanent lighting installation. A magnetic or strap-on lighting board with a coiled cable to the towing vehicle provides the required rear lamps at low cost.

The second is a trailer with lights obscured by the load. Bale trailers, straw trailers, and timber trailers often carry loads that overhang the rear of the trailer body. The fixed trailer lights disappear behind the load. A lighting board mounted on the rear of the load itself, projecting clear of the overhang, restores legal visibility. The Rules of the Road also says a load overhanging the rear by more than 1 m must carry a red flag or cloth at least 300 mm square by day, and a red reflector and red light at night.

The third is a trailer being moved between sites for sale, repair, or storage. The trailer’s own lights may be damaged, disconnected, or non-functional. A temporary lighting board provides legal road-going lighting until the trailer’s own system is repaired.

Lighting boards come in standard widths from 1.0 metre to 1.8 metres. A 1.2 metre board suits a small garden trailer or single-axle utility trailer. A 1.5 metre board suits a typical farm trailer. A 1.8 metre board suits a wide trailer or a load that overhangs the trailer width.

Choose a board with brake lights, indicators, tail lights, a number plate lamp, and integrated reflectors as a minimum. A board with a rear fog lamp adds visibility from behind in dense fog. LED lighting boards from Maypole, Ring, and Britax draw 1 to 2 amps total compared with 4 to 5 amps for a bulb-type board, which matters on long road runs with the trailer cable through a tow-vehicle socket.

Connectors: 7-Pin and 13-Pin Plugs Explained

The trailer-to-tractor (or trailer-to-vehicle) lighting connection uses one of two standard connectors, plus a third for combined lighting and auxiliary supply.

The 7-pin 12N connector handles lighting functions only. It carries seven circuits: left indicator, right indicator, rear fog, left tail, right tail, brake, and ground. This is the standard connector on most agricultural trailers and on most utility trailers under 1,500 kg.

The 7-pin 12S connector is a second 7-pin socket fitted to caravans and some specialist trailers. It carries auxiliary functions like reversing lights, interior lights, and battery charging, but it is not typically fitted on agricultural trailers.

The 13-pin Euro plug combines the 12N and 12S functions in a single connector. It carries all lighting functions plus reverse, permanent live, switched live, and ground. The 13-pin is now standard on new caravans and large agricultural trailers, especially those with hydraulic brakes that need an electrical brake controller signal.

Conversion adaptors are widely available between 7-pin and 13-pin in either direction. A tractor with a 7-pin socket can tow a 13-pin trailer through an adaptor that splits the 13-pin signals back to the 7-pin functions, with reverse and aux functions disconnected if the tractor has no source for them.

The common colour code for 7-pin and 13-pin trailer wiring, as used on UK-built trailers and kits, is:

Function	7-pin colour	13-pin colour
Left indicator	Yellow	Yellow
Right indicator	Green	Green
Rear fog	Blue	Blue
Left tail	Black	Black
Right tail	Brown	Brown
Brake (stop)	Red	Red
Ground (earth)	White	White

A reversal of black and brown swaps left and right tail lights, a common fault when wiring a new trailer or replacing a damaged plug. Always verify the wiring sequence with a test light before road use.

LED Trailer Lights: Why Most Farms Are Switching

LED trailer lights have become the default specification on new agricultural trailers. Three reasons drive the change.

The first is robustness. A trailer light takes constant vibration, mud, water, and impact from loading, tipping, and yard manoeuvres. A bulb-type rear lamp typically fails within 12 to 24 months of regular farm use because the bulb filament breaks under vibration. An LED lamp has no filament and lasts 30,000 to 50,000 hours of operation, which equates to the working life of the trailer.

The second is response time. An LED brake light illuminates within 0.001 seconds of the brake signal arriving. A bulb takes 0.2 to 0.3 seconds to reach full brightness. The 0.2 second difference equates to roughly 2.5 metres of additional warning distance for a vehicle following at 50 km/h. On a heavy laden trailer, those metres count.

The third is power draw. A pair of LED rear lights draws 0.5 to 1 amp combined, against 3 to 4 amps for a bulb pair. On a long road run with the trailer cable through a tow-vehicle socket, the lower draw reduces voltage drop, prevents nuisance fuse blows, and keeps the rear lights at full brightness for the full journey.

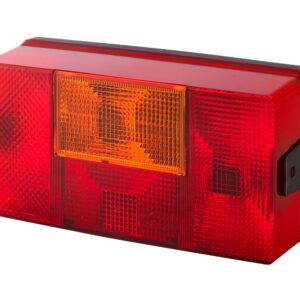

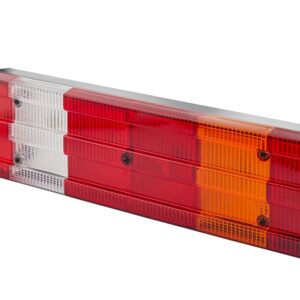

LED upgrades for an existing trailer follow a simple route. Replace the rear lamp clusters with direct-fit LED units that match the original mounting holes. Replace the side marker lamps with LED equivalents. Replace the number plate lamp with a small LED unit. The trailer wiring stays the same. The total upgrade cost for a typical agricultural trailer runs roughly between €95 and €235 in parts.

For the broader LED transition picture, see LED Rear Lamp Clusters: Benefits of Upgrading from Bulb to LED and What Are LED Work Lights and Why Are They Replacing Halogen.

Marker Lamps and Reflectors: The Rules

Marker lamps and reflectors give other road users information about a trailer’s width, length, and position. Irish rules set out when each is needed, and they differ from the UK in several places.

Side marker lamps are required on the trailer when the tractor and trailer combination is over 10 metres long. The statutory wording refers to “a marker lamp”, and RSA guidance describes it as a marker lamp on the right-hand side. Many owners fit amber side markers on both sides, spaced along the trailer, which gives better visibility at junctions and farm gaps. Side marker lamps are amber. If you need to know the exact positions required for your trailer, check the RSA “Revised Standards for Agricultural Vehicles” booklet.

Reflective markings apply to agricultural trailers over 3,500 kg design gross vehicle weight: rear reflective markings on all of them, side reflective markings if the combination is over 10 m, and a rear “LONG VEHICLE” marking over 13 m. Slurry tankers, spreaders and grain chaser bins are exempt from these markings.

Side reflectors are amber, and many side marker lamps include an integrated reflector, which keeps the side of the trailer tidy.

Side lamps (front position lamps) are on the Irish list for agricultural trailers and interchangeable towed equipment. These are white lamps, one each side at the front of the trailer, marking its presence to traffic approaching from in front.

Rear red triangular reflectors are the standard rear reflector for trailers. The triangular shape is used on trailers (rather than the rectangular shape used on motor vehicles) and the reflectors sit at the bottom rear corners of the trailer.

Amber rear-facing reflectors below the rear lamps are not something to add, as Irish rules say only red should face the rear apart from indicators, number plate lamps and reversing lamps. Stick to red reflectors at the back.

For more detail on individual lamp types, see Position Lamps: Front and Rear Sidelights Explained and Side Marker Lights.

Wiring an Agricultural Trailer Lighting Loom

A trailer lighting loom is the cable assembly that carries the lighting signals from the front plug to all the rear lamps and side markers. The loom either runs inside the trailer’s chassis frame, through a protective conduit, or along the chassis top in a clipped harness.

A complete trailer lighting loom has five sections.

The front plug section carries the cable from the 7-pin or 13-pin plug at the front of the trailer through to a junction box behind the front cross-member. Use a coiled cable for the trailer-to-tractor connection itself so the cable extends and retracts as the trailer turns and articulates.

The chassis run carries the loom along the trailer’s length to the rear axle. Run the loom on the inside of the chassis frame where possible, clipped at 500 mm intervals. Avoid running the loom across hinges, jacks, or moving parts.

The rear lamp branches feed left and right rear lamp clusters from the chassis run. Each branch carries tail, brake, indicator, fog (where fitted), and ground.

The side marker branches feed each side marker lamp position from the chassis run. Use a tap-in connector or a soldered joint inside a sealed junction box.

The number plate branch carries a single feed to the number plate lamp from the rear cross-member.

Choose pre-made looms with sealed Deutsch-style connectors at every junction. Pre-made looms from Britax, LED Autolamps, and other reputable suppliers cost roughly €60 to €175 depending on trailer length and lamp count, and they save 4 to 6 hours of fitting time compared with building a custom loom from individual cable, terminals, and connectors.

For the tractor end of the connection and switching, see How to Wire Tractor Lights with a Relay and the broader 12V vs 24V Lighting Systems guide.

Common Faults and How to Fix Them

Three faults account for most trailer lighting failures on farms.

Corrosion at the front plug is the most common cause. Mud, dust, and water enter the 7-pin or 13-pin connector during work and corrode the brass pins. The corrosion produces high resistance, which dims the lights, prevents the indicators flashing at the correct rate, and causes intermittent fog and brake faults. Replace the plug or clean the pins with contact cleaner and a wire brush. Apply dielectric grease before reconnecting.

Broken bulbs from vibration are the second most common cause on bulb-type trailers. A trailer that has been off the road for a season often has at least one blown bulb, identified by a missing function when the trailer first reconnects. Carry a spare bulb of each type in the cab or convert to LED to eliminate the issue.

Damaged loom cable is the third common cause, usually where the loom crosses a hinge, a moving suspension component, or a chassis section that flexes under load. The cable insulation cracks and the conductor breaks, often producing a fault that comes and goes as the trailer twists in normal use. Replace the damaged section of loom and reroute the cable to avoid the flex point.

Other less common but important faults include water in a sealed lamp housing (replace the lamp), a broken earth (clean and re-bolt the earth tag at the lamp body), and a swapped brown and black wire causing left/right confusion at the tail lights (re-pin the plug or junction box).

A weekly walk-round before any road trip catches most lighting faults before they become a roadside stop. Test indicators, brakes, tails, and the fog lamp from outside the cab with the trailer connected. The five-minute check prevents a €60 fixed charge from the Gardaí, or worse, and fits naturally into the pre-departure routine.

For maintenance fundamentals, see the related guides Tractor Lighting Maintenance and How to Troubleshoot Tractor Lighting Problems.
