Side Marker Lights in Ireland: The 10 m Rule, Colours, Spacing and Trailers

Side marker lights are amber lamps along the sides of a long vehicle or trailer that show its length at night. In Ireland, the agricultural lighting rules that came in on 1 January 2016 require side marker lamps on the trailer when a tractor and trailer combination is over 10 metres long, and trailers made since that date must use UN/ECE-compliant marker lamps.

This guide covers what side marker lights are, the Irish rules on when they are needed on tractors and agricultural trailers, the reflective marking rules that go with them, colours and spacing, end-outline marker lamps, wide and projecting agricultural loads, LED versus bulb units, and fitting.

What Is a Side Marker Light

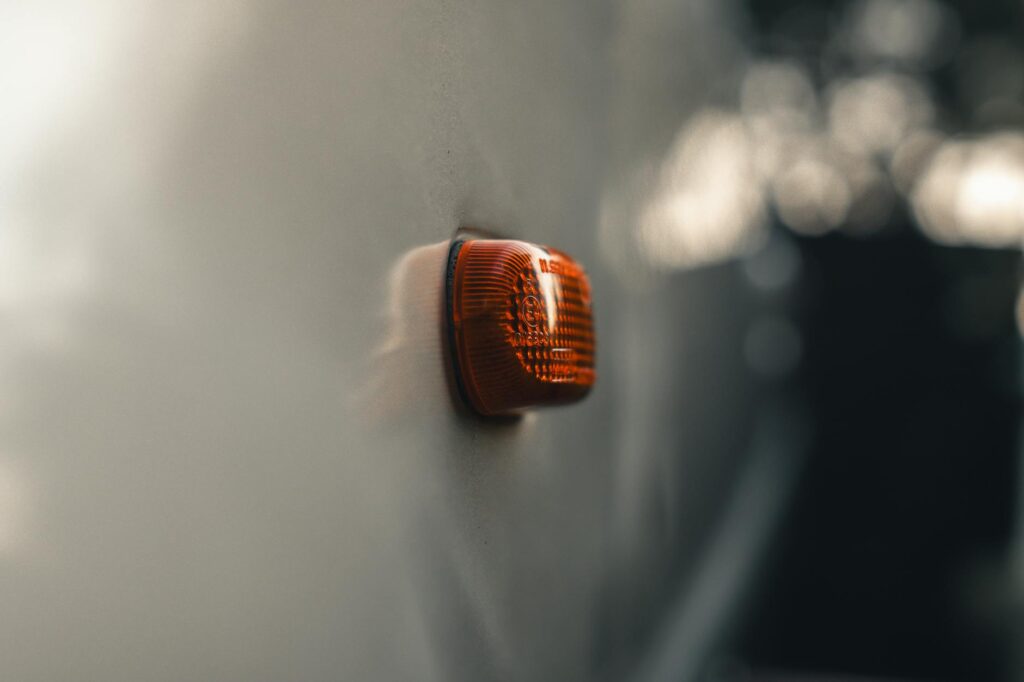

A side marker light is a small lamp fitted to the side of a vehicle or its load to make the vehicle more visible to other road users. Side marker lights face outward from the flanks of a vehicle, not forward or rearward, and their purpose is passive visibility. They tell drivers approaching from a side road or a junction that a long vehicle is there and roughly where it ends.

Side marker lights are distinct from side repeater indicators. A side repeater flashes amber to signal a turn. A side marker light stays on steadily whenever the vehicle’s position lamps are lit. Some combined units perform both functions in a single housing, with separate circuits.

Typical vehicles fitted with side marker lights include HGVs and their trailers, flatbed and curtain-side trailers, coaches, and many agricultural trailers, low loaders and long implements.

Irish Rules: When Are Side Marker Lights Required

Vehicle lighting in Ireland is governed by the Road Traffic (Lighting of Vehicles) Regulations 1963 (S.I. No. 189 of 1963), as amended. For farm vehicles the key change is the 2014 amendment (S.I. No. 249 of 2014), in force since 1 January 2016, which overhauled lighting on tractors, self-propelled machines and agricultural trailers in one package. New vehicles must also meet EU type-approval rules.

Tractor and Trailer Combinations Over 10 m

The Irish rule is based on the length of the whole combination, not the trailer on its own:

• When a tractor and trailer combination is over 10 metres long, the trailer must carry side marker lamps (S.I. No. 249 of 2014, inserting Art. 9(5) into the 1963 Regulations).
• The RSA describes this as “a marker lamp on the right-hand side”. The statutory wording refers to a marker lamp, so if you are unsure which sides need lamps, check the RSA’s Revised Standards for Agricultural Vehicles guidance. In practice, fitting markers on both sides costs little and gives far better protection at junctions.
• Trailers made on or after 1 January 2016 must use UN/ECE-compliant marker lamps and markings.

This is very different from the UK, where agricultural trailers are largely exempt from side marker lamps and the main farm trigger is an 18.3 m combination. In Ireland a tractor with a 10 m silage trailer or a long bale trailer will often pass 10 m once the tractor length is added, so most large farm trailers need them.

Reflective Markings That Go With Them

Agricultural trailers over 3,500 kg design gross vehicle weight (DGVW) also need reflective markings:

• Rear reflective markings (Art. 38A).
• Side reflective markings if the combination is over 10 m (Art. 38B).
• A rear “LONG VEHICLE” marking if the combination is over 13 m (Art. 38C).

These marking rules do not apply to towed equipment that can carry more than three times its own unladen weight, such as slurry tankers, fertiliser or manure spreaders and grain chaser bins (RSA).

Penalties

Using a trailer not equipped with the prescribed marker lamp carries a €60 fixed charge under the Road Traffic Act 2010 (Part 3) (Fixed Charge Offences) Regulations 2024. Lighting offences of this kind do not appear on the RSA penalty points chart.

Even where the rule does not apply, side marker lights on a long farm trailer make a real difference at night when a car approaches a field entrance or a farmyard gate from the side. Many agricultural trailers are now built with them. For the official summary, see the RSA guide to lighting and visibility laws for agricultural vehicles.

Side Marker Light Colours

Side marker lights must be amber. RSA guidance on lighting colour lists amber for side marker lamps and side reflectors, and notes that the rearmost one may be red in some cases.

White is not permitted on a modern vehicle’s side markers. The colour rule also applies to optional side marker lamps: any side marker you fit voluntarily should still be amber, or red at the very rear where allowed. The 1963 Regulations (Art. 48) also ban any lamp that could mislead other road users.

Side Marker Light Spacing and Height

The Irish rule sets the 10 m trigger but does not, in the guidance we have, spell out a spacing table for agricultural trailers. New trailers built under EU type approval arrive with their marker lamps already positioned to the UNECE installation rules. When fitting or replacing markers on an older trailer, a layout widely used on European trailers is a sensible guide:

Point	Common practice
Foremost lamp	Within about 4 m of the front of the trailer, including any drawbar
Rearmost lamp	Within about 1 m of the rear of the trailer
Gap between lamps	No more than about 3 m
Height	Low enough to be seen by car drivers, typically no more than 2.3 m above the ground
Visibility	Clearly visible from the side, including at an angle from junctions
Colour	Amber, or red at the very rear where allowed

As an example, a trailer with a 2 m drawbar and a 10 m body is 12 m long measured from the drawbar eye. A layout that works is 1 lamp 3.5 m from the eye, 1 at 6.5 m, 1 at 9.5 m and 1 at 11.5 m, which keeps the gaps at 3 m or less and the last lamp within 1 m of the rear. Check your own trailer and the maker’s guidance rather than copying a layout. If precise positions matter (for example on a trailer built after 1 January 2016), check the RSA guidance or ask the trailer manufacturer.

End-Outline Marker Lamps

End-outline marker lamps are a different lamp with a different job. They sit at the outer corners of a wide vehicle, as high as practicable, showing white to the front and red to the rear so other drivers can judge the vehicle’s width and height. Side marker lights show length; end-outline marker lamps show width. RSA lighting colour guidance confirms front end-outline markers are white and rear end-outline markers red.

On new vehicles, end-outline markers are fitted under EU type approval. Don’t rely on UK width thresholds or exemptions for these lamps in Ireland. Many units combine the white front lamp, red rear lamp and an amber side marker in 1 housing. Our guide to end-outline marker lamps covers them in full.

Wide Loads and Projecting Implements on Agricultural Vehicles

Side marker lights deal with long vehicles. Wide and projecting agricultural machinery is covered by the RSA’s weights and dimensions rules. The RSA’s Agricultural Vehicles Weights and Dimensions leaflet sets these maximum widths:

Vehicle	Max width	Max length
Agricultural tractor	2.55 m	12 m
Large tractor (unladen weight over 7.25 t)	2.75 m	12 m
Tractor on flotation tyres or dual wheels	3.50 m	12 m
Fully mounted and interchangeable towed equipment	3.00 m	12 m
Self-propelled agricultural machinery	3.50 m (wider allowed with escort, beacons and a “CAUTION, WIDE LOAD FOLLOWING” sign)	12 m
Agricultural trailer	2.55 m	12 m
Tractor and trailer combination	2.55 m	18.75 m

Projecting Loads and Implements

Ireland does not have the detailed UK marker board distances (the 1 m, 2 m and 3 m projection rules). What Irish rules and guidance do say:

• The 1963 Regulations require a rear projecting load lamp where a load projects more than 3 ft 6 in behind the rear lamps, and a lateral projecting load lamp where a load projects more than 16 in beyond the side lamp, during lighting-up hours. Missing these lamps falls under the €60 fixed charge.
• The Rules of the Road says loads overhanging the rear of a trailer by more than 1 m must carry a red flag or cloth at least 300 mm square by day, and a red reflector and red light at night. Side projections must show white to the front and red to the rear at night.
• RSA advice is that front loaders, forks and other front-mounted attachments should be lowered or faced down on public roads, because raised forks are a dangerous projection.
• Towed equipment without lights that hides the tractor’s lamps needs a lighting board.

For a front-mounted mower, a folded cultivator or a drill on a 3-point linkage, mark the projection clearly and follow the manufacturer’s and RSA guidance. Marker boards with lamps are still good practice even though Ireland does not set the UK distances.

Approval Marks on Side Marker Lights

Agricultural trailers made on or after 1 January 2016 must use UN/ECE-compliant marker lamps, and RSA guidance generally is to replace lamps like for like with type-approved units showing the E or e mark. Ireland recognises both EU (e) and UNECE (E) approvals, so lamps marked e1, e4 or E11, for example, are all valid. An approved side marker has been tested for colour and intensity. Buy approved units: the colour is reliable, the output is consistent, and there is no argument at the roadside.

LED vs Bulb Side Marker Lights

LED side marker lights last longer and draw less power than filament bulb units, which is why most new trailers and commercial vehicles now leave the factory with LED side markers.

Lifespan and Reliability

An LED side marker has no filament to break from vibration, and many are fully sealed with the lens bonded to the body. Bulb units need a new bulb now and again, and the bulb holder is the usual entry point for water and corrosion.

Power Draw

An LED side marker typically draws a small fraction of the current of a filament bulb unit. On a trailer with 8 side markers, the saving reduces load on the towing vehicle’s tail light circuit and minimises voltage drop over long wiring runs.

Voltage Options

Side marker lights are available in 12V and 24V versions. Most agricultural trailers and light commercial vehicles run 12V. HGVs and larger plant typically use 24V. Many LED side markers are rated for both (often labelled 10 to 30V or 12/24V), which suits trailers that may be towed by different vehicles. Browse our side marker lamps and the LED marker lamp range for 12V, 24V and multi-voltage units, with free delivery to Ireland on orders over €150.

How to Choose and Fit Side Marker Lights

Choosing the right side marker light depends on 3 factors: vehicle type, voltage system, and mounting style.

By Vehicle Type

• Trailer side marker lights: the most common application. Surface-mount LED units with screw fixings are the standard choice for flatbeds, grain and silage trailers and livestock trailers.
• Side marker lights for trucks: HGVs and rigid trucks use larger, brighter side marker lights, often with integrated reflectors. 24V units are typical.
• Implements and low loaders: bracket-mounted units or stalk markers keep the lamp clear of moving parts and away from wheels.

Mounting Styles

Side marker lights come in 3 main mounting configurations:

1. Surface mount: the lamp body sits flat against the vehicle panel or chassis rail, held by 2 screws. Best for flat-sided trailers and box bodies.
2. Bracket mount: a metal or rubber bracket spaces the lamp away from the chassis rail. Used where the vehicle side is not flat or where clearance from wheels and mudguards is needed.
3. Flush mount: the lamp body recesses into a hole cut in the panel, sitting flush with the surface. Common on coaches and box bodies.

Wiring

Side marker lights wire into the tail light (position lamp) circuit so they light whenever the sidelights or headlights are on. On a trailer, that means the tail light feeds in the plug: pin 5 (right-hand tail, brown) and pin 7 (left-hand tail, black) on both 7-pin 12N and 13-pin sockets, with pin 3 as the earth. Wire each side’s markers to that side’s tail feed so a single fault does not black out both sides. Our 7-pin trailer plug wiring guide has the full pin table.

Each side marker needs a positive feed and a good earth, either through a dedicated earth wire or the mounting bolts to the chassis. A dedicated earth wire is far more reliable on a painted or galvanised trailer.

For agricultural use, waterproof every connection. Heat-shrink crimp connectors or sealed junction boxes prevent corrosion from rain, mud and pressure washing. A side marker that works in the yard but fails on the road is usually a corroded earth.

IP Rating

For agricultural trailers and farm vehicles, choose side marker lights rated at least IP67, which means dust-tight and able to withstand temporary immersion. Units rated IP69K withstand high-pressure, high-temperature jet washing and suit livestock trailers that are washed and disinfected regularly.

Side Marker Lights and Roadworthiness Testing

Commercial vehicles, and trailers over 3,500 kg used as commercial trailers, take the CVRT, where fitted lamps are checked and a non-working lamp is a failure item. Agricultural trailers that are not commercial trailers (categories O3/O4) do not need a periodic test, and ordinary tractors (design speed 40 km/h or less) are not tested either. On a farm the responsibility sits with the operator: the trailer must be roadworthy, required marker lamps must be fitted and working, and any lamp that is fitted must be kept clean and lit.

Keeping Side Marker Lights in Working Order

A side marker light requires very little maintenance. LED units in particular are fit-and-forget components for most of their service life. The 3 most common issues are:

1. Cracked or broken lenses: caused by hedges, loading equipment, or reversing into obstacles. Replace the whole unit rather than taping it, because a damaged lens lets water in and can show white light.
2. Corroded connections: farm vehicles are exposed to moisture, slurry and road salt. Check terminals before the winter and reapply dielectric grease.
3. Dim or flickering output: usually a failing bulb or a poor earth. LED replacements remove the bulb failure issue entirely.

A quick walk-around check before any road journey takes 2 minutes and catches failed side markers before they become a roadside problem. For the full set of lamps a farm trailer needs, read our agricultural trailer lighting requirements guide.

Frequently asked questions

When does a trailer need side marker lights in Ireland?

When a tractor and trailer combination is over 10 m long, the trailer must carry side marker lamps (S.I. No. 249 of 2014, in force since 1 January 2016). The 10 m is measured on the whole combination, not just the trailer.

What colour should side marker lights be?

Side marker lights must be amber. RSA guidance notes the rearmost may be red in some cases. White side markers are not allowed on modern vehicles.

Do tractors and farm trailers need side marker lights?

Yes, once the tractor and trailer combination is over 10 m. Trailers made since 1 January 2016 must use UN/ECE-compliant marker lamps. Trailers over 3,500 kg DGVW also need side reflective markings over 10 m and a “LONG VEHICLE” marking over 13 m, except slurry tankers, spreaders and chaser bins.

What is the difference between side marker lights and end-outline marker lamps?

Side marker lights are amber lamps along the sides that show a vehicle’s length. End-outline marker lamps sit at the upper outer corners, white to the front and red to the rear, and show a wide vehicle’s width.

Do side marker lights need to be E-marked?

Agricultural trailers made on or after 1 January 2016 must use UN/ECE-compliant marker lamps, and RSA guidance is to fit type-approved lamps with an E or e mark. Approved lamps are the better buy on any trailer because their colour and intensity have been tested.
