Rear Fog Lights in Ireland: When to Use Them, the Law, Bulbs and the NCT
In this guide
- What Are Rear Fog Lights
- Why Are Vehicles Fitted With Rear Fog Lights
- When to Use Rear Fog Lights
- Why Rear Fog Lights Must Not Be Left On
- The Rear Fog Light Symbol
- Irish Rules: Which Vehicles Need Rear Fog Lights
- How Rear Fog Lights Are Fitted
- Rear Fog Light Bulbs
- Rear Fog Lights and the NCT or CVRT
- How to Replace a Rear Fog Light Bulb
- Rear Fog Lights on Tractors and Trailers
- Frequently asked questions
Rear fog lights are bright red lamps at the back of a vehicle that, in Ireland, you should switch on only in dense fog or falling snow, and switch off at all other times. They exist so drivers behind can see you when ordinary tail lights disappear.
That is the short answer, and it comes straight from the Rules of the Road, which says: “Use fog lights only during dense fog and falling snow. You must turn them off at all other times.” The rest of this guide explains why vehicles are fitted with rear fog lights, how they differ from tail and brake lights, the dashboard symbol, which vehicles need them under Irish rules, the bulbs they use, what the NCT and CVRT check, and what applies to tractors and trailers.
What Are Rear Fog Lights
A rear fog light is a red, rear-facing lamp designed to make a vehicle more readily visible from behind in fog. It is far brighter than a tail light and is switched on and off by the driver with its own switch, separately from the other rear lamps.
Every car has several red lamps at the back, and they are easy to confuse:
- Rear position lamp (tail light): a dim, steady red light that comes on with the sidelights and headlights. Usually a 5W filament or a low-power LED.
- Stop lamp (brake light): a brighter red light that comes on only when the brake pedal is pressed. Usually 21W.
- Rear fog lamp: a bright red light that stays on until you switch it off. Usually 21W, in a lamp designed to throw that light out to the rear with high intensity.
Most cars and vans have the rear fog lamp built into one of the rear lamp clusters or into the rear bumper. Older vehicles, trailers and farm machinery often carry a separate, standalone rear fog lamp bolted under the bumper or on a lighting board.
Why Are Vehicles Fitted With Rear Fog Lights
Vehicles are fitted with rear fog lights so that following drivers can see them in fog early enough to slow down. Fog scatters light, and a 5W tail light that is easy to see on a clear night fades to nothing within a short distance in thick fog. A rear fog lamp is many times brighter, so it punches through far enough to give the driver behind a warning.
Rear-end collisions in fog follow a familiar pattern: a driver closes on a slower vehicle faster than they realise because they cannot see it until the last moment. A bright rear fog lamp gives that driver an earlier cue. At 80 km/h a car covers roughly 22 metres every second, so every extra metre of warning matters.
That is also why they became standard. RSA guidance says rear fog lamps have been required on all new cars since 1998 and are mandatory on heavy commercial vehicles (the details are in the legal section below).
When to Use Rear Fog Lights
Use rear fog lights only in dense fog or falling snow, and switch them off as soon as conditions improve. That is the Irish rule, from the Rules of the Road and the RSA’s fog lights guidance.
What the Rules of the Road Says
- Fog lights: use them only during dense fog and falling snow. You must turn them off at all other times.
- Driving in fog: use dipped headlights together with your fog lamps, reduce your speed and keep a safe distance from the vehicle in front.
- Dazzle: the Road Traffic (Lighting of Vehicles) Regulations 1963 say no lamp may be capable of dazzling other road users, and a rear fog lamp in clear conditions does exactly that.
UK guidance uses a “cannot see more than 100 metres” test. Ireland does not. The Irish wording is simply dense fog or falling snow.
Fog, Snow, Rain and Spray
Dense fog and falling snow are the two conditions the Irish rules name. Ordinary rain, drizzle, light mist and road spray are not on the list, and in those conditions rear fog lights cause more problems than they solve. Slow down and use dipped headlights instead.
When to Switch Them Off
Switch rear fog lights off the moment the dense fog lifts or the snow stops falling. If a car is following closely behind you in fog, its driver can already see your normal tail lights, so the fog lamp may only be dazzling them. Many drivers forget they are on because the dashboard light is small. Make a habit of checking the amber fog symbol whenever the fog thins out.
A Practical Rule
If you can clearly see the tail lights of the vehicle in front, the driver behind you can probably see yours. If those tail lights keep fading out or vanish altogether in dense fog, your rear fog lights are doing a useful job.
Front fog lamps follow the same use rule but do a different job. For the full picture on both sets, read our guide on when to use fog lights.
Why Rear Fog Lights Must Not Be Left On
Rear fog lights left on in clear conditions cause 2 problems: dazzle and brake-light masking.
- Dazzle: at normal following distances on a clear or wet night, a rear fog lamp is uncomfortably bright. It glares off a wet road and makes it harder for the driver behind to judge distance.
- Brake-light masking: a rear fog lamp is roughly as bright as a brake light, and on many cars it sits close to one. With the fog lamp on, the change in brightness when you brake is much smaller, so the driver behind is slower to notice you slowing down.
Rear fog lamps should also never be used as parking lights. If you stop at the roadside in fog, use your sidelights, and your hazard warning lights if you are causing an obstruction.
The Rear Fog Light Symbol
The rear fog light symbol is an amber (orange or yellow) warning light on the dashboard. It shows a lamp shape facing to the right with 3 straight horizontal lines coming out of it, crossed by a single wavy vertical line that represents fog. It lights whenever the rear fog lamp is on.
The front fog light symbol is green, faces the opposite way, and has lines angled downwards. The switch or stalk position for the rear fog lamp usually carries the same amber-style symbol. For a full side-by-side description of both symbols, how the switches work and what the colours mean, see our guide to the rear fog light symbol.
The tell-tale is part of the vehicle’s approved lighting installation, so if it stops working, get it fixed. It is the only reminder that the fog lamp is still on.
Irish Rules: Which Vehicles Need Rear Fog Lights
RSA guidance sets out the main points. The RSA cites the Road Traffic (Lighting of Vehicles) Regulations 1963, as amended, for lighting rules generally.
| Vehicle | Rear fog lamp required? |
|---|---|
| New car (since 1998) | Yes, according to the RSA |
| Heavy commercial vehicle | Yes; if only one is fitted it must be on the right-hand side |
| Agricultural tractor or self-propelled machine | Not on the RSA’s list of obligatory tractor lamps, but if fitted it must work |
| Agricultural trailer | Not on the RSA’s list of obligatory trailer lamps, but if fitted it must work |
| Any vehicle with a factory-fitted rear fog lamp | Keep it; the RSA says removing factory-fitted fog lamps may be an illegal modification |
Where a rear fog lamp is fitted, it must be red. Article 41 of the 1963 Regulations allows no light to the rear except red, apart from a few exceptions such as indicators, number plate lamps and reversing lamps.
How Rear Fog Lights Are Fitted
New vehicles are fitted with rear fog lamps to the EU and UNECE lighting installation rules they are approved under, so on a car, van or modern tractor the position is set at the factory. The practical points to know are:
| Requirement | What to check |
|---|---|
| Number | 1 or 2 |
| Position if only 1 fitted | On the right-hand side (RSA wording for heavy commercial vehicles), or on the centre line |
| Position if 2 fitted | A matched pair, one each side |
| Distance from stop lamp | Kept well apart, so braking and fog lamp can be told apart |
| Colour | Red |
| Approval | Type-approved lamp carrying an E or e mark, as RSA guidance advises for replacements |
| Wiring | Must not light up when the brakes are applied |
| Tell-tale | A dashboard warning light that shows when the fog lamp is on |
The right-hand rule is why so many cars sold in Ireland have a single rear fog lamp on the right. Ireland drives on the left, so the right-hand side is nearest the centre of the road, where the lamp is easiest to see for traffic behind and well away from the left-hand brake light. Imported cars built for right-hand traffic, such as some continental imports, sometimes have the single fog lamp on the left, which is worth checking.
Keeping the fog lamp away from the stop lamp is there for the brake-masking reason described above: if the 2 bright lamps were side by side, a driver could not tell braking from fog lamp.
On most cars the rear fog switch only works once dipped headlights (or front fog lamps) are on, which is how the European lighting installation rules are written. Some older vehicles and aftermarket installations do not do this.
Rear Fog Light Bulbs
Most rear fog lights with a replaceable bulb use a P21W (trade code 382), a 21W single-filament bulb on a BA15s bayonet base. Some modern clusters use a wedge bulb, and many newer cars use LEDs built into the lamp that cannot be changed separately.
| Bulb | Trade code | Base | Wattage | Where you find it |
|---|---|---|---|---|
| P21W | 382 | BA15s bayonet (pins level) | 21W | Most cars, vans, older tractors, standalone fog lamps |
| PR21W | None common | BAW15s bayonet (angled pins) | 21W | Some clusters that use a red-glass bulb behind a clear lens |
| W21W | 582 | W3x16d wedge | 21W | Some modern European clusters |
| P21W 24V | 241 | BA15s bayonet | 21W | Lorries, buses and 24V plant |
| Integrated LED | None | Built into the lamp | Typically a few watts | Many cars from the 2010s onwards, LED trailer lamps |
Always check the handbook or the old bulb before buying, because a bulb with the wrong pin layout will not lock into the holder. Our guide to P21W 382 bulbs covers the base, codes and replacement in more detail, and you can find replacement bulbs in our standard miniature bulbs range.
12V or 24V
Cars, vans and most tractors run on 12V. Lorries, many buses and some plant run on 24V. A 12V bulb in a 24V system blows almost immediately, and a 24V bulb in a 12V system glows weakly. Match the bulb or lamp to the vehicle voltage.
LED Rear Fog Lights
Complete LED rear fog lamps draw a small fraction of the current of a 21W bulb, last far longer, and cope with vibration better because there is no filament. They are a sensible choice for trailers, plant and tractors. Choose a complete lamp that carries an E-mark for the rear fog function (usually marked F on the lens). Browse our LED rear lamps for combination and standalone units.
Rear Fog Lights and the NCT or CVRT
In Ireland cars are tested at the NCT and commercial vehicles at the CVRT. At both, lamps that are fitted must work, and that includes optional ones. RSA guidance is that front fog lamps, where fitted, must work or the vehicle fails, and the same approach applies to the rear fog lamp.
The common rear fog faults that cause trouble at a test are:
- Rear fog lamp missing or not working.
- LED lamp with light sources out.
- Lens cracked or damaged so the light is affected.
- Lamp loose or likely to fall off.
- Fog lamp switch not working.
- Wrong colour (not red) or a factory lamp removed.
- Tell-tale not working.
At the CVRT, defects are graded minor, major or dangerous, and a fail must be retested within 21 days. A blown bulb is the usual cause of a rear fog fault and the easiest to fix. A failed tell-tale is often a blown dashboard bulb or, on some cars, a symptom of a fog lamp circuit fault.
How to Replace a Rear Fog Light Bulb
On most cars and vans, replacing a rear fog light bulb takes 5 to 10 minutes with a screwdriver or trim tool.
- Switch on dipped headlights and the rear fog lamp, and confirm which lamp is out.
- Open the boot or tailgate and remove the trim panel or access cover behind the lamp. Bumper-mounted fog lamps are usually reached from underneath.
- Twist the bulb holder anticlockwise and pull it out.
- Push the P21W in slightly, twist anticlockwise and pull it out of the holder.
- Fit the new bulb (push in, twist clockwise until it locks) and refit the holder.
- Test the lamp and check the amber tell-tale lights before refitting the trim.
If the new bulb does not light, check the fuse, look for green corrosion in the holder, and check the earth. Where the fog lamp works but the tell-tale does not, the fault is on the dashboard side.

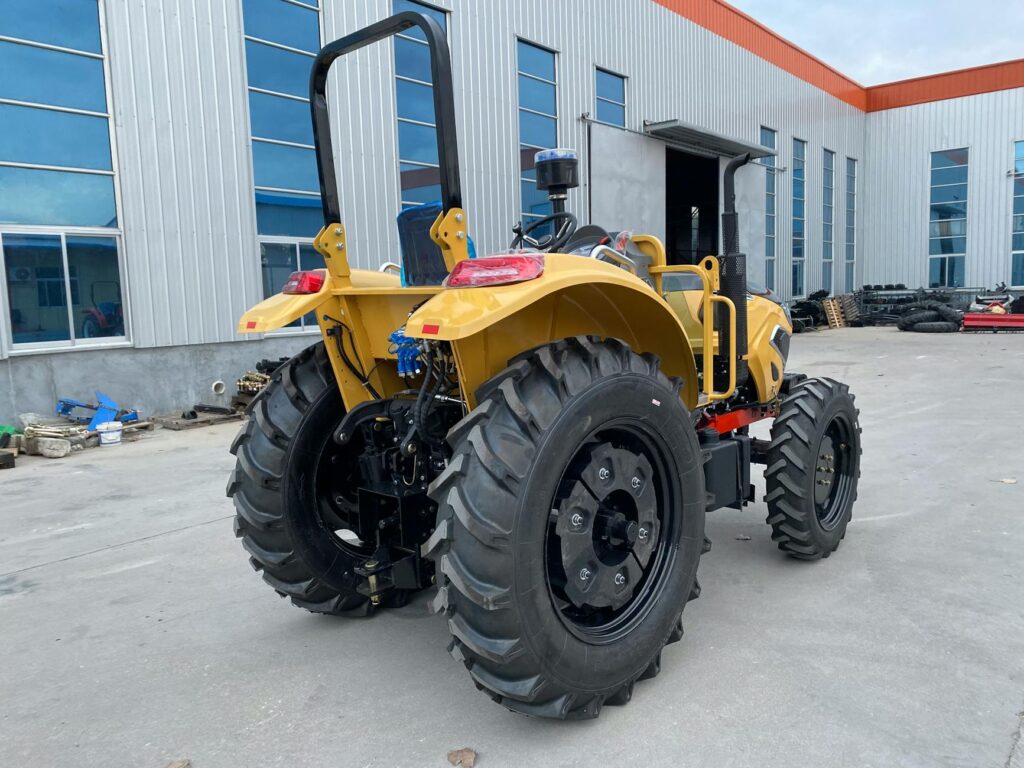

Rear Fog Lights on Tractors and Trailers
The rules for farm vehicles are not the same as for cars, and they catch people out.
Tractors
Since 1 January 2016 every agricultural tractor and self-propelled agricultural machine in Ireland must carry a full lighting system: side lamps, headlamps, rear lamps, stop lamps, direction indicators, an amber beacon and number plate lighting. A rear fog lamp is not on that list, but most modern tractors have one fitted. If it is fitted it must be red, must work, and may only be used in dense fog or falling snow. Ordinary tractors have no periodic test, but fast tractors over 40 km/h used for non-exempt work go through the CVRT, where fitted lamps are checked. For more on tractors specifically, see our guide to tractor fog lights.
Agricultural Trailers
Agricultural trailers and interchangeable towed equipment must have side lamps, rear lamps, stop lamps, direction indicators and number plate lighting. A rear fog lamp is not on that list, but many farm trailers have one anyway, and it is useful on a trailer drawing silage or grain on foggy autumn mornings. If one is fitted, it must be red, approved and wired so it does not light with the brakes.
Trailer Wiring
On a 7-pin 12N socket and on a 13-pin socket, the rear fog lamp feed is pin 2. A trailer fog lamp that does not work is usually a corroded pin, a broken earth, or a towing vehicle whose fog circuit is not connected through to the socket.
Wide Implements
When towed equipment hides the tractor’s front or rear lamps or reflectors, Irish rules require a lighting board. If the board carries a rear fog lamp, place it on the right-hand side or centre, like a permanently fitted lamp.
Frequently asked questions
When should you use rear fog lights in Ireland?
Only in dense fog or falling snow. The Rules of the Road says you must turn them off at all other times. Use dipped headlights with them, slow down and keep a safe distance.
Why does my car only have one rear fog light?
Many vehicles have a single rear fog lamp, and RSA guidance says that where only one is fitted to a heavy commercial vehicle it must be on the right-hand side. On a car the single lamp is usually on the right too, keeping it away from the left-hand brake light and making it easiest to see for following traffic. Some cars fit 2 as a matched pair.
Is a rear fog light an NCT failure?
A fitted rear fog lamp that does not work is a failure item at the NCT and CVRT, because fitted lamps, including optional ones, must work. RSA guidance also says removing factory-fitted fog lamps may be an illegal modification.
Can you get fined for using rear fog lights?
Using fog lights outside dense fog or falling snow breaks the Rules of the Road, and a dazzling lamp breaks the 1963 Lighting Regulations. No specific fixed charge amount was found for fog lamp misuse, so the Gardaí would treat it as a general lighting offence.
Can I use rear fog lights in heavy rain?
No. The Irish rule is dense fog or falling snow only. In rain they dazzle drivers behind, reflect off the wet road and hide your brake lights, so leave them off and use dipped headlights.
