Tractor Fog Lights in Ireland: Do You Need Them and What Do the Rules Say

A tractor fog light is an auxiliary lamp fitted at the front or rear of an agricultural tractor to improve visibility in fog or falling snow. Irish law does not list fog lamps among the obligatory lights for tractors, but any fog lights that are fitted must show the right colour, must work, and may only be used in dense fog or falling snow. Front fog lights show white or selective yellow light and sit low on the bonnet or grille. Rear fog lights show red light and sit on the rear of the cab or fender. This guide covers the legal position for tractors in Ireland, the differences between front and rear fog lamps, when fog lights may be used on the road, the LED upgrade options, and the fitting procedure.

What a Tractor Fog Light Is and How It Differs from Other Lamps

A tractor fog light is an auxiliary lamp designed to give the operator visibility in dense fog or falling snow, where standard headlights and rear lamps are not enough. Fog lamps differ from work lamps, headlamps and beacons in 3 measurable ways: beam pattern, mounting height and approved purpose.

Beam pattern. A front fog lamp produces a wide, low, flat beam with a sharp horizontal cut-off above the centre of the beam. The cut-off keeps light out of the fog directly in front of the driver’s eyes and reduces the back-scatter that dazzles the driver in heavy mist. A headlamp, by contrast, throws light up to and beyond eye level, which creates back-scatter when light hits suspended water droplets in fog.

Mounting height. Front fog lamps sit low, usually on the grille, bumper or front weight frame. Low mounting keeps the beam under the driver’s line of sight and reduces glare reflected back from the fog. Work lamps and headlamps, by contrast, are typically mounted at 1.5 to 3.2 metres on a tractor.

Approved purpose. Fog lamps carry ECE Regulation 19 (front) or ECE Regulation 38 (rear) type approval marks, both specific to fog lamp use. The approval marks confirm the lamp’s beam pattern and intensity meet the specific cut-off and brightness requirements for fog operation. A work lamp without R19 or R38 approval is not a fog lamp, even if it produces a “foggy-looking” beam. RSA guidance is to replace lamps with like-for-like, type-approved units showing the E or e mark.

A tractor fog light therefore differs from a work light, a headlight and a beacon in 3 measurable ways: beam shape, mounting height and type approval. For the wider tractor lighting picture, see The Complete Guide to Tractor Lighting and Tractor Headlights.

The Irish Legal Position on Tractor Fog Lights

Lighting in Ireland is governed by the Road Traffic (Lighting of Vehicles) Regulations 1963, as amended. For agricultural vehicles, the key amendment is S.I. No. 249 of 2014, in force since 1 January 2016.

The starting position. Tractors and self-propelled agricultural machines used on a public road must have a full lighting system: side lamps, headlamps, rear lamps, stop lamps, direction indicators, a flashing amber beacon and number plate lighting. This must be fitted and working at all times, not just during lighting-up hours. Front and rear fog lamps are not part of that list.

Where fog lamps are required on other vehicles. RSA guidance says rear fog lamps have been required on all new cars since 1998 and are mandatory on heavy commercial vehicles, where a single lamp must be on the right-hand (offside) side. No equivalent requirement for agricultural tractors was found. If your tractor came from the factory with a rear fog lamp, keep it working.

The rules that apply when fog lights are fitted. Front fog lamps are optional; if fitted, they must be white or selective yellow and they must work, or a vehicle that is tested fails its roadworthiness test. Rear fog lamps must show red. The RSA also warns that removing factory-fitted fog lamps may be an illegal modification. Fog lamps of either kind may only be used in dense fog or falling snow, and must be switched off at all other times (Rules of the Road).

Installation. Approved fog lamps are designed to be fitted to the ECE installation rules, and the figures in this guide (such as the 100 mm gap between a rear fog lamp and a stop lamp) come from those rules. They are good practice on any tractor. Rear fog lamps (ECE R38) produce between 150 and 300 candela. A rear fog lamp should not light up when the brakes are applied, a tell-tale should show the driver when it is on, and approved installations wire it so it can only be switched on with the dipped headlamps or front fogs.

Enforcement. Misuse of fog lamps is not covered by a specific fixed charge in Ireland. It would be dealt with by the Gardaí as a breach of the Lighting Regulations or another road traffic offence, which means a possible court appearance rather than a set fine. A rear fog left on in clear weather dazzles following drivers and can mask the stop lamps.

For the wider road-legal picture, see Tractor Lighting Regulations, Tractor Road Legal Lights, and the Irish lighting regulations.

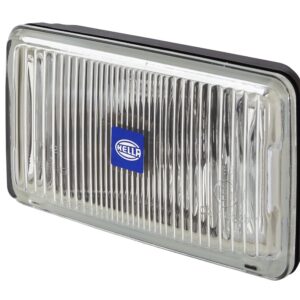

Front Fog Lights on Tractors

Front fog lights on tractors are auxiliary forward lamps that give visibility ahead of the tractor in fog. They are not required on tractors in Ireland, but they are useful on hill farms, in river valleys and on coastal ground where dense fog is a regular winter and spring problem.

Front fog lamp specifications. ECE Regulation 19 type approval. White or selective yellow light only (yellow is permitted but white is more common in modern LED units). Wide, flat beam pattern with sharp upper cut-off. Mounted low on the front of the tractor, because low mounting works best in fog. No more than two, as a symmetrical pair where two are fitted. Independent switching from the headlamps.

Mounting positions on tractors. Front grille, the most common position, with the lamps either side of the radiator inlet at 0.6 to 1.0 metres above ground. Front bumper or weight frame, mounted on the front weight carrier or a custom bracket, useful on tractors with deeply recessed grilles. Bonnet edge, low-mounted on the front edge of the bonnet, useful where the grille is dense and gives no fog-lamp space.

Lumen output for front fog lamps. Typical halogen H3 fog lamp, 55 W, 700 to 1,200 lumens. Typical LED fog lamp, 12 to 24 W, 1,200 to 2,800 lumens. The LED produces more lumens at one third the wattage and gives off less heat.

The yellow vs white question. The RSA’s lighting colour guidance allows front fog lamps in white or selective yellow. Some drivers find yellow light gives slightly less glare back from water droplets in mist, although the benefit is small and the evidence is mixed. Many operators prefer the modern white LED fog lamp for cleaner visibility.

Three reasons to fit a front fog lamp on a tractor. Frequent road movement at first light or last light when fog is common. Hill-farm or coastal operations where dense fog comes in regularly. Long road runs to outside farms or rented ground where the tractor shares the road with commuter traffic on foggy mornings.

For more detail on front fog lamp choice, see Fog Lamps Explained and LED Fog Lamps.

Rear Fog Lights on Tractors

Rear fog lights on tractors are red lamps fitted to the rear of the cab, fender or rear lighting board to mark the tractor’s position to following drivers in dense fog. They are not on the Irish obligatory list for tractors, but many tractors have one from the factory, and many farmers fit one for road safety, especially where a slow tractor shares a fast road with cars.

Rear fog lamp specifications. ECE Regulation 38 type approval. Red light only. Intensity 150 to 300 candela. Light-emitting surface at least 100 mm from any stop lamp. Mounting height between 250 mm and 2,100 mm above ground on an agricultural vehicle. A single lamp on the centre line or right-hand side. Not lit by the brake circuit. Dashboard tell-tale to show when the rear fog is active. Best practice is to wire it so it only works with the dipped headlamps or front fogs on.

The 150 candela minimum matters. A standard rear lamp (the small red sidelight) shines at only a few candela, far too dim for fog visibility. A single-level brake lamp shines at 60 to 185 candela. The rear fog lamp at 150 to 300 candela is designed to be as bright as or brighter than a brake lamp, to cut through fog and stand out at distance.

Mounting positions for rear fog. Rear of the cab, on the cab roof or on the rear cab panel above the rear window. Rear fender, on the side of the rear fender above the rear wheel. Lighting board or implement, on a rear-mounted lighting board or on a hitched implement (where the implement hides the tractor’s own rear lamps, a lighting board is required in Ireland anyway). Twin-lamp fitment is permitted but uncommon on tractors; single-lamp fitment is the norm.

Why the separation from the brake lamp matters. A rear fog lamp at 150 to 300 candela can be as bright as or brighter than a brake lamp at 60 to 185 candela. If the two are mounted close together, a following driver cannot see when the brakes come on (the brake lamp is drowned out by the rear fog). The installation minimum is 100 mm between the light-emitting surfaces, and more separation makes the brake lamp easier to pick out against the steady fog lamp glow.

Common tractor rear fog lamp fitments. Many modern tractors from John Deere, Case IH, New Holland and Massey Ferguson have a rear fog lamp built into the rear light cluster or offered as part of a road lighting package, depending on model, year and specification. Check the operator’s manual or the rear cluster before adding a separate lamp.

Rear fog warning lamp on the dashboard. A tell-tale that shows the driver when the rear fog is on is part of the UN R48 installation rules. Most modern tractors fit an amber tell-tale within the instrument cluster. Older tractors and aftermarket fitments often use a small LED tell-tale beside the rear fog rocker switch.

For more detail, see Rear Fog Lights and Tractor Tail Lights.

When to Use Fog Lights on a Tractor on the Road

The Rules of the Road says: “Use fog lights only during dense fog and falling snow. You must turn them off at all other times.” The RSA’s fog lights guidance says the same. There is no Irish equivalent of the UK’s “100 metre” guide, so don’t rely on it.

The rule in practice. If the fog is dense or snow is falling, fog lamps may go on. If it is raining, misty or just dark, they stay off. As a rule of thumb, if the operator can clearly see the rear lights of a vehicle well ahead, the fog is not dense and the rear fog lamp should be off. The same applies to front fog lamps, which can dazzle oncoming drivers.

The glare problem. Rear fog lamps dazzle following drivers in clear conditions because the lamp is many times brighter than a standard rear lamp. Leaving a rear fog on after the fog clears is a common mistake, and it breaks the rule.

When to switch fog lights off. As soon as the fog thins or the snow stops. In slow traffic where the driver behind is close and can clearly see your rear lamps (the fog lamp dazzles them at close range). When a vehicle is following closely, where the brightness of the rear fog can confuse the driver behind about whether you are braking.

When to switch fog lights on. Dense fog. Falling snow or sleet that scatters the headlight beam back at the driver. Heavy rain on its own is not named in the Irish rule, so use dipped headlights rather than fog lamps in rain.

Driving in fog. The Rules of the Road advises dipped headlights plus fog lamps, reduced speed and a safe distance. On a tractor, the amber beacon must be on as well, as it must be whenever a tractor is on a public road.

The dashboard tell-tale check. The operator should glance at the rear fog tell-tale at the start of every road journey. If the tell-tale is on and there is no dense fog or falling snow, switch the rear fog off. The check takes 2 seconds.

Indicator and brake lamp visibility. When fog lights are on, indicators and brake lamps should still be clearly visible to other road users. If the rear fog washes out the brake lamps (because the lamps are too close together or the rear fog is too bright), use one rear fog lamp only (where two are fitted) or fit a brighter brake lamp upgrade.

For the road-use rules in detail, see When to Use Fog Lights.

LED Fog Light Upgrades for Tractors

LED fog lights replace older halogen fog lamps and deliver a brighter, whiter beam at around one third of the wattage with a much longer rated life. A complete LED fog lamp often fits the existing bracket on most tractors, and it meets ECE R19 (front) or R38 (rear) when the lamp carries the appropriate approval mark.

Three reasons to upgrade. Halogen fog bulbs (typically H1 or H3) fail every 200 to 600 hours in tractor service. LEDs typically last 8,000 to 25,000 hours. Halogen draws 50 W to 80 W per lamp; LED draws 12 W to 24 W. Halogen produces 700 to 1,200 lumens; LED produces 1,200 to 2,800 lumens, almost double the output at less than half the power.

LED fog lamp options on a tractor. Direct replacement housing, a complete LED fog lamp that bolts to the existing bracket and carries its own driver and lens designed for LED. Universal LED auxiliary lamp, a separate small LED unit (typically 60 mm to 120 mm round or square) that bolts to a custom bracket where no original fog lamp exists. LED replacement bulbs that plug into a halogen fog lamp socket (H1, H3, H7) are sold widely, but the RSA says LED bulbs are only legal if type-approved, fitted to a compatible vehicle and not dazzling, so a cheap LED bulb in a halogen fog lamp is not a safe road option.

ECE R19 (front fog) and R38 (rear fog) compliance for LED retrofits. The approval mark belongs to the complete lamp, so a complete LED fog lamp should carry the E-mark on the housing or lens, with R19 or R38 shown in the approval code. Cheap LED lamps without an E-mark may produce a beam pattern that does not meet R19 or R38, and (more practically) produce glare that dazzles other road users.

Cheap vs premium LED fog lamps. Cheap LED fog lamps (under about €35 per pair) often have no proper beam-pattern lens, producing a flood beam without the sharp upper cut-off that fog operation needs. Premium LED fog lamps (roughly €70 to €175 per pair) replicate the halogen R19/R38 beam pattern correctly, including the cut-off, and pass type approval.

Three pitfalls to avoid. Some LED units only work one way round, so check polarity markings before wiring. Very cool LED colour temperatures (above about 6,500 K) give a blue tinge, so choose an approved lamp rather than a high-kelvin bulb. LED output falls as the lamp gets hot, so choose a lamp with a solid heatsink and check the data sheet for thermal performance.

For the LED vs halogen comparison in detail, see LED vs Halogen Tractor Lights and LED Headlamp Conversions.

Fitting and Wiring a Tractor Fog Light

Fitting a tractor fog light is a 60 to 120 minute job for a competent DIY installer. The procedure below covers a front fog lamp pair fitted to the front grille or front weight carrier, the most common retrofit. Tools needed: drill, 6 mm and 8 mm metal bits, M6 or M8 spanner set, wire cutters and crimps, multimeter, masking tape and a tape measure.

Step 1, plan the mounting position. Identify a flat, structurally sound surface on the front grille, front weight carrier or bumper, as low as practical. Mark symmetrical positions for the two lamps, equal distance from the tractor centreline.

Step 2, fit the lamp brackets. Bolt the brackets to the chosen surface with M8 bolts and Nyloc nuts. Tighten to 18 to 25 Nm. Use a sealing washer and silicone gasket if drilling into a sheet metal panel. Confirm both brackets sit at the same height and angle.

Step 3, fit the lamps to the brackets. Bolt the fog lamps to the brackets, leaving the bracket pivot bolts loose for aim adjustment in step 7. Most fog lamps use M8 hex-head bolts through slotted bracket arms.

Step 4, run the wiring from the lamps to the relay. Take the two lamp wiring tails (typically 500 mm to 800 mm long with sealed connectors) and route them rearward to a central junction point under the bonnet or behind the front grille. Use cable ties every 200 to 300 mm. Avoid sharp metal edges, hot exhaust and turbo housings.

Step 5, fit the relay. Mount the relay on the front bulkhead or near the battery (within 500 mm of the positive terminal where possible). The relay should be a standard 4-pin or 5-pin automotive relay rated 30 to 40 amps. Connect the relay’s high-current input (pin 30) to the battery positive via a 15 amp in-line fuse for halogen fogs or a 5 amp fuse for LED fogs. Connect the relay’s high-current output (pin 87) to both lamp positives in parallel.

Step 6, fit the dashboard switch and tell-tale. Choose a free rocker position on the dashboard or auxiliary switch panel. Connect the switch’s input to a fused ignition-switched feed (so the fog cannot be left on with the ignition off). Connect the switch’s output to the relay’s control wire (pin 86). Connect the relay’s control earth (pin 85) to the chassis. Wire a small LED tell-tale (typically green for front fog, amber for rear fog) parallel to the relay control wire so the lamp on the dashboard lights when the fog is on.

Step 7, aim the lamps. Park the tractor on level ground 8 to 10 metres from a wall or shed at night. Switch the fog lamps on. The standard aim for the upper edge of a front fog beam is, as near as practicable, 3 percent below the horizontal, which is about 225 mm below the height of the lamp at 7.5 metres. The beam should be flat and wide, with no light spill above the cut-off. Tighten the bracket pivot bolts to final torque.

Step 8, test the wiring. Confirm the lamps light only when the dashboard switch is on. Confirm the dashboard tell-tale lights with the fogs. Confirm the lamps switch off when the ignition is off. Confirm no flicker, no dim ends, no hot wiring (touch the wires after 5 minutes; warm is acceptable, hot is not).

Step 9, weatherproof connections. Wrap any non-sealed crimps with self-amalgamating tape. Apply silicone dielectric grease to relay terminals and connectors. Confirm no exposed copper.

For wider electrical foundation, see How to Wire Work Lights to a 12V System and How to Wire Tractor Lights with a Relay.

Common Questions About Tractor Fog Lights

Six questions cover most of what Irish farmers ask about tractor fog lights.

Q1, do tractors need fog lights in Ireland? Fog lamps are not on the obligatory list for tractors and self-propelled machines under S.I. No. 249 of 2014. That list is side lamps, headlamps, rear lamps, stop lamps, indicators, an amber beacon and number plate lighting. Any fog lamp that is fitted should work and must be used correctly.

Q2, are rear fog lights legal on tractors? Yes. Fit an ECE R38 approved lamp, at least 100 mm from any stop lamp, 250 mm to 2,100 mm above the ground, not lit by the brakes, and with a dashboard tell-tale showing when it is on. Wiring it to work only with the dipped headlamps or front fogs on is good practice.

Q3, when should I use my tractor fog lights on the road? Only in dense fog or falling snow, as the Rules of the Road says. Switch them off at all other times. Leaving them on in clear conditions breaks the rule and can be dealt with by the Gardaí.

Q4, can I fit aftermarket LED fog lights to my tractor? Yes, where the LED unit carries ECE R19 (front) or R38 (rear) approval and is fitted in the correct position. Cheap LED units without proper beam-pattern lenses do not meet the type approval and produce glare that can dazzle other road users.

Q5, what colour can my fog lights show? Front fog lamps must show white or selective yellow light only. Rear fog lamps must show red light only. Any other colour (blue, green, amber on a fog lamp) is not legal.

Q6, where on my tractor should I mount fog lights? Front fog lamps low on the front of the tractor, as a symmetrical pair where two are fitted. Rear fog lamps between 250 mm and 2,100 mm above ground, at least 100 mm from any stop lamp, on the centre line or right-hand side if only one is fitted, on the rear of the cab or on a rear lighting board.

Choosing the Right Fog Light Set-Up

A complete tractor fog light upgrade costs roughly €40 to €290 depending on whether the operator fits a single rear fog lamp (roughly €40 to €95), a pair of front fog lamps (roughly €70 to €230), or a full set with both front and rear (roughly €115 to €290).

Three buying checks before fitting. Check the lamp carries ECE R19 (front) or R38 (rear) approval, not just a generic “fog lamp” label. Check the lamp’s mounting hardware suits the tractor’s mounting position (some lamps come with limited bracket options). Check the LED unit is CAN bus compatible if the tractor was built after 2015 and has CAN bus rear lighting.

Agri Lighting stocks ECE-approved front and rear fog lamps in halogen and LED, with brackets and wiring kits suitable for John Deere, New Holland, Massey Ferguson, Case IH, Fendt, Claas, Valtra and most other tractor brands found on Irish farms. Orders ship from Lincolnshire, with free delivery to Ireland on orders over €150. Browse the universal auxiliary lamp range for the full selection, including LED fog lamps and halogen fog lamps.

For the wider tractor lighting context, see The Complete Guide to Tractor Lighting, Tractor Lighting Regulations, and Fog Lamps, DRLs, and Auxiliary Lights.
