Tractor Indicator Lights: Rules, Flasher Units and Faults

Tractor indicator lights are amber flashing lamps at the front and rear that show which way a tractor is about to turn. In Ireland, direction indicators have been part of the compulsory lighting system for every tractor, self-propelled machine and agricultural trailer on a public road since 1 January 2016. They should flash 60 to 120 times a minute, with a tell-tale for the driver.

The indicator circuit on a tractor is simple, easy to fault-find and cheap to repair. This guide covers what the Irish rules require, how the circuit and flasher unit work, the hazard warning lights, LED conversions, the faults that stop tractor indicators working or make them flash fast, and how to replace a bulb or lens.

What the Law Requires for Tractor Indicators

Vehicle lighting in Ireland is governed by the Road Traffic (Lighting of Vehicles) Regulations 1963, as amended. The Road Traffic (Lighting of Vehicles) (Amendment) Regulations 2014 (S.I. No. 249 of 2014), in force since 1 January 2016, require a full lighting system on tractors and self-propelled agricultural machines, including direction indicators, and that system must be in place at all times, not just during lighting-up hours. Agricultural trailers and interchangeable towed equipment must also have indicators.

The exception is for older tractors and trailers (pre-1980, or 30+ years old according to current RSA guidance) used only in daylight. Older vehicles that have lights fitted must keep them working, so a 1970s tractor with indicators fitted must have them working on the road. Using a vehicle not equipped with the prescribed lamps carries a €60 fixed charge.

How Many Indicators

A typical tractor layout is:

• Standard 40 km/h tractors: 1 front and 1 rear indicator on each side.
• Faster tractors (50 km/h and above): usually 1 front, 1 rear and 1 side repeater on each side, as fitted by the manufacturer under type approval.

Agricultural trailers need 1 rear indicator each side, and so does a lighting board on towed equipment that hides the tractor’s own lamps. When replacing lamps, keep to the layout the tractor or trailer was built with.

Colour, Position and Markings

Requirement	What to aim for
Colour	Amber
Distance from side	As close to the outer edge as the original mounting allows
Separation	Left and right indicators clearly separate, at the original positions
Height	Keep to the manufacturer’s original height, clear of implements and loads
Flash rate	60 to 120 flashes per minute
Markings	An E or e approval mark with the category number above it: 1, 1a or 1b for front, 2, 2a or 2b for rear, 5 or 6 for side repeaters
Switching	All indicators on one side, including the trailer, worked by one switch and flashing in phase

Indicators must be amber. RSA lighting colour guidance lists amber for indicators, side marker lamps and side reflectors.

The Flash Rate

The UNECE lighting installation standard (R48) sets a flash rate of 60 to 120 flashes per minute, and indicators should keep to that rate whatever the vehicle’s speed. Testers at the NCT and CVRT check that indicators work. If one indicator fails, a load-sensing flasher makes the others on that side flash outside the normal range, which is why a blown bulb makes the remaining lamps flash fast. The fast flash is a warning to the driver, not a fault in itself.

The Tell-Tale

The driver must be able to tell from the seat that the indicators are working. Either the indicators themselves must be visible from the seat, or the tractor must have a tell-tale for the front and rear indicators, including those on the rearmost trailer. This is why many tractor flasher units have a second tell-tale for the trailer.

Hazard Warning Lights on Tractors

A hazard warning light device flashes every indicator on the tractor and trailer together. Most tractors built since the 1980s have one as standard. A working hazard system should:

1. Be operated by one switch
2. Make all the direction indicators on the vehicle or combination flash in phase
3. Have a flashing tell-tale (which may share the indicator tell-tale)
4. Work even when the ignition is off

Hazard lights are for warning other road users of a temporary obstruction while the vehicle is stationary, or briefly to warn following drivers of a hazard ahead. A slow-moving tractor travelling along a road should rely on its lights and its amber beacon, which in Ireland must be switched on whenever the tractor is on a public road, not its hazards. Using hazards on the move also stops the indicators showing which way you intend to turn. Our guide to hazard warning flashers covers the circuit and the rules in more detail.

The Components of a Tractor Indicator Circuit

A tractor indicator circuit has 7 parts. A fault in any one of them can stop the indicators on one side or the whole circuit.

• Bulb or LED. The light source, typically a P21W (21W, BA15s base) behind an amber lens, a PY21W (21W amber bulb, BAU15s base) behind a clear lens, or an R10W or similar small bulb in some side repeaters. Many newer tractors have sealed LED lamps with no separate bulb.
• Lens and housing. The amber or clear lens, sealed to the housing with a rubber gasket. Cracked lenses let water in and cause repeated bulb failures and corroded holders.
• Bulb holder. The socket that holds the bulb, usually a quarter-turn bayonet fitting. Its spring contact and brass terminals are the usual corrosion points.
• Flasher unit. The timer that switches power to the lamps on and off at the legal rate.
• Indicator switch. The column stalk or dash switch that sends the flasher’s output to the left or right lamps. The hazard switch overrides it.
• Wiring loom. The cables from the fuse box to the flasher, switch and the corner lamps, plus the feed to the trailer socket (pin 1 left, pin 4 right on both 7-pin 12N and 13-pin sockets).
• Fuse. Protects the indicator circuit. A blown fuse stops all the indicators at once and is the first thing to check when nothing flashes on either side.

Flasher Units Explained

A flasher unit (also called a flasher relay) is the small timer that switches the indicator circuit on and off between 60 and 120 times a minute. It sits behind the dash, under the steering column or in the fuse box on most tractors, and it clicks when the indicators are on. Tractors use 3 main types.

Thermal Flasher

The traditional design, found on older tractors. A bimetallic strip heats under the current of the bulbs, bends, breaks the circuit, cools and reconnects. Its flash rate depends on the bulb load: less load (a blown bulb, or LEDs) means a different rate or no flash at all. Thermal flashers are rated for a specific number of 21W bulbs.

Electronic Load-Sensing Flasher

A solid-state timer that holds a steady rate with the correct load, but deliberately flashes fast when it detects a missing bulb. This is the bulb-failure warning drivers are used to. Because it measures current, it also reads low-current LED lamps as blown bulbs and flashes fast.

LED-Compatible (Load-Independent) Flasher

An electronic flasher that keeps a steady rate whatever the load, from a single LED to a full set of filament bulbs. This is the right choice for an LED conversion or a tractor that tows LED-equipped trailers. Some types lose the bulb-failure warning, so check the lamps visually on your walk-round.

Ratings, Pins and Voltage

Flasher units are rated by load, often written like “2 x 21W” for a tractor alone or “2 + 1 x 21W” for a tractor and trailer, and many have a separate trailer tell-tale terminal. Terminal markings vary by maker, but the common ones are 49 or B (feed in), 49a or L (output to the switch), 31 or E (earth) and C or C2 (tell-tale). Match the voltage too: browse our 12V flasher units for most tractors, or 24V flasher units for 24V machines and plant.

Tractor Indicators Not Working: Common Faults

Most tractor indicator faults fall into 6 patterns. Each has a clear symptom and a logical fix.

Fault 1: No Indicators on Either Side

Symptom: no flashing, no tell-tale, no clicking. Cause: blown fuse, failed flasher unit, or no feed to the flasher. Fix: check the fuse first. If it is intact, check for power at the flasher feed terminal with a test lamp or multimeter, then swap the flasher unit. If the hazards work but the indicators do not, suspect the indicator switch or its feed, because many systems feed the two through different routes.

Fault 2: One Side Dead

Symptom: indicators work on one side only. Cause: the indicator switch contact for that side, or a broken wire between the switch and the lamps. Fix: check for a pulse at the switch output for that side. If there is power at the switch but not at the lamps, trace the loom.

Fault 3: Indicators Flashing Fast (Hyper-Flash)

Symptom: the indicators on one side flash much faster than usual. Cause: one lamp on that side is out, because the load-sensing flasher sees less current. Fix: walk round and find the dark lamp, including the trailer and any side repeater. Replace the bulb or clean the holder.

If every lamp is working and the indicators still flash fast, LED lamps are the usual cause. The flasher reads their low current as a blown bulb. Fit an LED-compatible flasher unit. Load resistors also work, but they get very hot and must be mounted on metal away from wiring and plastics.

Fault 4: Fast Flash Only When the Trailer Is Connected (or Disconnected)

Symptom: the rate changes when you plug in the trailer. Cause: a flasher that is not rated for the trailer load, a trailer with LED lamps on a tractor with a load-sensing flasher, or a bad earth at the trailer plug (pin 3). Fix: check the trailer lamps and plug first, then fit a flasher rated for tractor plus trailer, or an LED-compatible one if the trailer has LEDs.

Fault 5: Slow Flash or Lamps Stay On

Symptom: the rate drops below 60 a minute, or the lamps light steadily without flashing. Cause: a thermal flasher overloaded or underloaded, low battery or charging voltage, or a failing flasher. Fix: check the battery voltage with the engine running. If the voltage is healthy, replace the flasher. A short circuit can also leave lamps lit or blow the fuse repeatedly, so check the loom where it passes hinges and cab mounts.

Fault 6: Odd Behaviour When Braking or With the Lights On

Symptom: indicators flash dimly, the brake light flickers in time with the indicator, or the opposite side glows faintly. Cause: a poor earth on a combination rear lamp, so current from the indicator finds a path back through another filament. Fix: clean the earth point to bare metal, refit with dielectric grease, and check the earth wire inside the lamp. For wider electrical fault-finding, read our tractor lighting diagnostic guide.

Converting Tractor Indicators to LED

An LED conversion replaces filament indicator bulbs or whole lamps with LED units for longer life, faster response and lower current draw. LEDs have no filament to break from vibration, which suits tractors well.

Bulbs or Complete Lamps

The most reliable route is a complete E-marked LED indicator lamp with the correct category number on the lens (for example 1 or 1a for front, 2a for rear). An LED bulb pushed into a lamp built for a filament bulb changes the light pattern and intensity the lamp was approved with, and cheap LED bulbs can be too dim off-axis or flicker. If you do use LED bulbs, choose amber or matching colour for the lens type: amber LED for a clear lens (replacing a PY21W), and the correct base (BA15s for P21W, BAU15s for PY21W).

Conversion Steps

1. Identify the bulb type and voltage from the existing bulbs or the operator manual.
2. Fit the LED lamps or bulbs at all 4 corners (and side repeaters on faster tractors).
3. Test with the original flasher. If the indicators flash fast or not at all, fit an LED-compatible flasher of the correct voltage.
4. Test both sides, the hazard lights, the dash tell-tale and the trailer indicators.
5. Count the flashes for 30 seconds: between 30 and 60 is within the standard 60 to 120 per minute.

Cheap unbranded LED lamps can also cause radio interference, which matters on tractors with GPS guidance. Look for lamps with EMC approval (UNECE Regulation 10).

How to Replace a Tractor Indicator Bulb or Lens

A tractor indicator bulb replacement is a 5-minute job. A lens or lamp replacement takes 15 to 30 minutes.

1. Find the failed lamp. Switch the indicators on and walk round the tractor and trailer. Check both sides, the side repeaters and the trailer.
2. Remove the lens. Most tractor indicator lenses are held by 2 or more screws. Some older lamps use a bezel or clip.
3. Remove the bulb. Push in slightly and turn anticlockwise to release the bayonet pins, then pull straight out. A burnt or green bulb base means the holder needs attention.
4. Inspect the holder. Clean the contacts with fine abrasive paper and check the spring contact has tension. A weak spring causes intermittent flashing.
5. Fit the new bulb. Match the type (P21W, PY21W or the original code) and voltage. Push in and turn clockwise to lock.
6. Refit the lens. Check the gasket is in place and not split. Tighten the screws evenly and gently; overtightening cracks plastic lenses.
7. Test. Check the flash rate, the tell-tale and the hazard lights.

Indicator Lamps by Tractor Age

Indicator bulbs are largely universal, but lamps and connectors vary between makes and model years, so always check the part against the specific tractor.

• Older tractors (before the mid-1980s): often have indicators added later as aftermarket kits, typically round or rectangular amber lamps on the front mudguards and a rear lighting board. Thermal flashers and P21W bulbs are common.
• 1980s to 2000s tractors: usually have indicators built into the front lamp clusters or mudguard lamps and combination rear lamps, with electronic flashers and P21W or PY21W bulbs.
• Recent tractors: increasingly use sealed LED lamps, and the flasher function may be handled by an electronic control module rather than a plug-in relay. A failed LED lamp is replaced as a complete unit, and dash warnings may need checking with the dealer’s diagnostic tool.

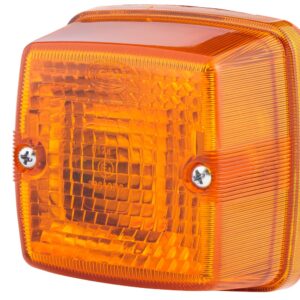

For universal replacement indicator lamps in round, rectangular and combination styles, browse our flasher lamps. For a broader look at how indicators work on cars, vans and trailers as well as tractors, see our guide to flasher lamps and indicators.

Choosing Replacement Indicator Lights

Before you order, run through 4 checks:

1. Approval mark: the lamp should carry an E-mark with the right category number for its position.
2. Bulb type and base: match the socket (P21W on BA15s, PY21W on BAU15s), or choose a sealed LED lamp.
3. Voltage: 12V or 24V, or a multi-voltage LED lamp.
4. Flasher compatibility: if any lamp on the tractor or trailer is LED, make sure the flasher unit can handle the load.

Frequently asked questions

Why are my tractor indicators flashing fast?

Fast flashing usually means one lamp on that side has failed, so the flasher sees less current. Check every lamp on the tractor and trailer. If all are working, LED lamps on a load-sensing flasher are the likely cause, and an LED-compatible flasher unit fixes it.

What is the legal flash rate for tractor indicators?

Indicators should flash at between 60 and 120 times per minute, the rate set in the UNECE lighting installation standard. Count for 30 seconds: 30 to 60 flashes is within range.

Do old tractors need indicators?

Older tractors (pre-1980, or 30+ years old according to current RSA guidance) used only in daylight are exempt from the full lighting system, including indicators. Any other tractor on an Irish public road needs working indicators. If indicators are fitted to an older tractor, they must be kept in working order.

Can I use hazard warning lights while driving a tractor on the road?

Hazard lights are for warning of a temporary obstruction when stationary, or briefly to warn of a hazard ahead. A tractor on the move should use its amber beacon, which must be on whenever it is on a public road in Ireland, not its hazards.

What bulb do tractor indicators use?

Most use a 21W P21W bulb behind an amber lens or a PY21W amber bulb behind a clear lens, in 12V or 24V. Many newer tractors have sealed LED indicator lamps with no replaceable bulb.
