Red and White Reflectors: Where They Must Be Fitted in Ireland

A reflex reflector is a passive device that returns light back towards its source, making a vehicle visible to other road users without drawing any power. In Ireland, reflector colours and the reflective markings on heavier agricultural trailers are covered by the Road Traffic (Lighting of Vehicles) Regulations 1963, as amended, and the RSA’s lighting colour guidance. The colour convention is fixed across every road vehicle: red reflectors face the rear, white reflectors face the front, and amber reflectors face the side.

This guide applies that convention to tractors, agricultural trailers, and mounted implements. The detail covers the red rear reflectors every vehicle needs, white front reflectors, the amber side reflectors that suit longer trailers, the triangular reflector convention that separates trailers from powered vehicles, the reflective markings Irish law requires on trailers over 3,500 kg, and sensible mounting positions.

What a Reflex Reflector Is and Why the Law Requires It

A reflex reflector is a moulded optical device that reflects light directly back to its source along the same path. A following driver’s headlights strike the reflector, and the reflector throws that light back to the driver’s eyes, so the vehicle ahead shows as a bright marker even with no lamp lit. The reflector needs no wiring, no bulb, and no power, which makes it the most reliable conspicuity device on any farm vehicle.

Reflectors matter because lamps fail. A tail lamp blows, a trailer plug corrodes, or a battery dies, and the vehicle loses its lit markers. A reflector keeps working through all of that. Irish law treats lamps and reflectors together: towed equipment that hides the tractor’s own lamps or reflectors must carry a lighting board, and heavier agricultural trailers must carry retro-reflective markings in their own right.

Reflectors are graded by approval marking. An approved reflector carries an E or e mark and a class code, and the class tells an inspector the device meets the brightness and angle standard for road use. RSA guidance is to replace lamps and reflectors like-for-like with type-approved units. A cracked, faded, or unmarked reflector does not meet the standard, even if it looks reflective in the yard. For the full legal framework, see agricultural vehicle lighting law.

The Colour Rule: Red Rear, White Front, Amber Side

The reflector colour rule fixes one colour to each face of the vehicle: red to the rear, white to the front, amber to the side. RSA lighting colour guidance lists red for rear reflectors and amber for side reflectors (the rearmost side reflector may be red in some cases). The rule never changes by vehicle type, so a tractor, a grain trailer, and a mounted plough all follow the same three colours. The colours let an approaching driver read which way a vehicle faces from its reflectors alone.

The logic behind the colours matches the lamp convention. The 1963 Regulations allow no light to the front except white or yellow, and no light to the rear except red, apart from listed exceptions such as indicators and reversing lamps. Red marks the back of a vehicle because red means the rear of something ahead of you, the same as a tail lamp. White marks the front because a colourless reflector shows the leading edge. Amber marks the side and shows the flank to traffic crossing or overtaking.

A reflector that shows the wrong colour for its position misleads other drivers, and the 1963 Regulations ban lamps capable of misleading other traffic. A white reflector facing rearwards tells a following driver they are looking at the front of an oncoming vehicle, which hides the real risk. The fix is always to match the colour to the face: red back, white front, amber side. For reflector types and how they are made, see vehicle reflectors.

Rear Red Reflectors: The Core Requirement

Every trailer and tractor should carry two red rear reflectors facing directly backwards. The reflectors mount in a matched pair, one each side, as near as practicable to the outer edges of the vehicle so they mark its true rear width. A tractor carries non-triangular red reflectors at the rear; a trailer normally carries red triangular reflectors.

The pair should be symmetrical. The two rear reflectors sit at the same height and the same distance in from each edge, so the rear of the vehicle reads as a balanced pair of markers rather than a single offset point. Symmetry lets a following driver judge both the width and the centre of the vehicle ahead in the dark.

Rear reflectors fail most often through damage and dirt. A reflector caked in field mud or slurry reflects almost nothing, and a cracked lens scatters light instead of returning it. Cleaning the rear reflectors is part of the same pre-road check as the tail lamps, because a buried reflector is a failed reflector. Rear lamps and reflectors work as a set, covered in tractor tail lights and rear lighting.

The Triangular Reflector Convention: Trailers Only

Under the European type-approval lighting standards that tractors and trailers are built to, red triangular rear reflectors are for trailers, and powered vehicles use non-triangular reflectors. The triangle tells other road users that the vehicle ahead is being towed, which warns them that a longer, slower, articulated outfit is in front. A tractor, a self-propelled sprayer, or a telehandler should not carry triangular reflectors at the rear.

The convention runs both ways. A trailer shows red triangular reflectors at the rear, and a powered vehicle shows red reflectors of a non-triangular shape. A triangle on a tractor falsely signals a tow, and a non-triangular reflector on a trailer fails to signal one, so keep to the shape the vehicle was built with when replacing reflectors.

Agricultural trailers follow the trailer convention. A grain trailer, a flatbed, a slurry tanker, or a livestock box should all carry red triangular rear reflectors. For the complete Irish trailer specification, see agricultural trailer lighting requirements.

Reflective Markings on Heavier Agricultural Trailers

Ireland adds a rule for heavier trailers that is separate from ordinary reflectors. Under the Road Traffic (Lighting of Vehicles) (Amendment) Regulations 2014 (S.I. No. 249 of 2014), in force since 1 January 2016, agricultural trailers over 3,500 kg design gross vehicle weight need:

• rear reflective markings;
• side reflective markings if the tractor and trailer combination is over 10 m long;
• a rear “LONG VEHICLE” marking if the combination is over 13 m long.

The RSA says these marking requirements do not apply to towed equipment that can carry more than three times its own unladen weight, such as slurry tankers, fertiliser or manure spreaders and grain chaser bins. Trailers made on or after 1 January 2016 must use UN/ECE-compliant markings.

Front White Reflectors and Amber Side Reflectors

White front reflectors mark the leading corners of a towed load so a driver pulling alongside, or a vehicle waiting at a junction, can see where the trailer begins in the dark. They are a sensible fit on any farm trailer. Powered vehicles do not usually carry front reflectors, because their headlamps and side lamps already mark the front.

Amber side reflectors mark the flank of longer vehicles and trailers, so traffic crossing or overtaking can read the length of the outfit. Space them along the body, with one near the front, one near the rear, and intermediate reflectors so no unmarked gap is too long.

Side reflectors matter most on the long outfits common in farming. A tractor towing a grain trailer can run well over 10 metres, and once a combination passes 10 m Irish law requires a side marker lamp on the trailer. Amber side reflectors back that lamp up, marking the flank to a car emerging from a side road. The amber colour matches the side marker lamps that do the same job after dark, covered alongside the reflectors in vehicle reflectors.

Mounting Height and Position

A rear reflector does its work when it sits in the beam of a following car’s headlights. On most trailers that means low on the rear, at roughly the height of the tail lamps or below, rather than high on a headboard. When replacing reflectors, use the positions the manufacturer chose, because those were set to meet the type-approval standard.

The lateral position ties the reflector to the edge of the vehicle. Mount each rear reflector close to the outermost edge on its side, so the pair marks the true width rather than a narrow point near the centre. A reflector tucked too far inboard understates how wide the vehicle is and invites a clipping pass on a narrow road.

Position faults are common on modified and home-built trailers. A reflector mounted high on a headboard, low under a chassis rail, or close to the centreline is far less effective even though the reflector itself is sound. Checking the height and edge distance when a reflector is first fitted avoids a problem that only shows up at a Garda roadside check. For the penalties that follow a lighting or marking fault, see lighting offences for agricultural vehicles.

Compliance Checklist for Reflectors on Farm Vehicles

A farm vehicle is in good order when every face carries the right colour and shape, reflectors sit near the edges in the headlight zone, and any reflective markings the trailer needs are in place. The checklist below runs through the points to confirm before a tractor, trailer, or mounted implement goes on a public road.

1. Two red rear reflectors on every vehicle and trailer, matched as a symmetrical pair near the outer edges.
2. Triangular red reflectors at the rear of trailers only. Non-triangular red reflectors on powered vehicles.
3. White front reflectors at the leading corners of trailers.
4. Amber side reflectors along each side of longer trailers, spaced so no gap is excessive.
5. Reflective markings on trailers over 3,500 kg DGVW: rear markings, side markings over 10 m, “LONG VEHICLE” over 13 m (not slurry tankers, spreaders or chaser bins).
6. Low and near the outer edge at the rear, in the original mounting positions.
7. Approved and clean. Each reflector carries an E or e mark, is uncracked, and is wiped clear of mud before the road.
8. Repeat any reflector a load masks. Towed equipment that hides the tractor’s lamps or reflectors needs a lighting board with its own red reflectors at the new rearmost point.

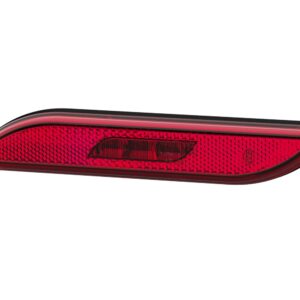

Keeping a few spare bolt-on and stick-on reflectors in the workshop makes a missing or smashed reflector a two-minute fix rather than a reason to leave a trailer parked. For replacement reflectors and marker lamps, see the Agri Lighting reflector and marker range.

Summary

Vehicle reflectors mark a farm vehicle to other road users without drawing power. In Ireland, the Road Traffic (Lighting of Vehicles) Regulations 1963, as amended, and RSA guidance set the colours: red to the rear, white to the front and amber to the side, and the colour never changes by vehicle type. Trailers carry red triangular reflectors at the rear, while powered vehicles carry non-triangular red reflectors. Agricultural trailers over 3,500 kg also need reflective markings, with side markings over 10 m and a “LONG VEHICLE” board over 13 m. Every reflector should be approved, uncracked, clean and mounted near the outer edges. A farmer who fits the right colour to each face, uses triangles only on trailers, and keeps reflectors clear of mud stays visible when the lamps cannot be relied on.
