John Deere Tractor Lights: Complete Fitment and Replacement Guide

A John Deere tractor lighting system covers 5 light categories: front headlamps, work lights, cab lights, beacons, and rear tail clusters. The number, position, and electrical specification of each lamp varies by series, by build year, and by cab type. A current John Deere 6R can carry well over a dozen individual lamps. A 1980s John Deere 2140 with an SG2 cab carries only a handful. Buying a replacement or upgrade lamp for a John Deere starts with identifying the series, the cab type, and the original lamp specification, then matching either an OEM John Deere part or a compatible aftermarket equivalent. This guide walks through every John Deere series in current and heritage use, the standard light fitment for each, the LED upgrade path, and the buying decisions that protect both the warranty and the tractor’s electrical system.

How John Deere Tractor Lighting Works

A John Deere tractor lighting system is the network of lamps, wiring, switches, and electronic control units fitted to a John Deere tractor for road use, field use, and operator visibility. The system is split between road-legal lamps (headlamps, sidelights, tail lamps, indicators, beacon, number plate light) and work lamps (roof-mounted, fender-mounted, bonnet-mounted, and A-pillar-mounted high-output lamps for fieldwork).

The road-legal lamps are wired through the tractor’s main loom and switched from the dashboard. The work lamps run on separate circuits, often switched in groups (front roof, rear roof, fender) so that only the lamps needed for the current task are running. Modern John Deere tractors (6R, 7R, 8R, 9R from 2010 onwards) integrate every lamp through the CAN-bus electrical system. Heritage John Deeres (30, 40, 50, 55 series and 6000/7000/8000 series before 2002) run conventional analogue circuits with simple relays and switches.

The cab type changes the work lamp count and mounting position. A John Deere with an SG2 (Sound Guard 2) cab has different roof lamp positions to a John Deere with an OPU or LPU cab. A Duncan or Super Duncan cab from the 30 series era has fewer factory mount points than a modern CommandView cab on a current 8R. The first task before buying any John Deere replacement light is to confirm the series and the cab.

Identifying Your John Deere Series Before You Buy

A John Deere series identifier sits in 3 places on every tractor: the bonnet badge, the operator’s manual, and the chassis number plate (usually on the right-hand side of the front frame or on the cab pillar). The series determines the lighting fitment, the wiring connector type, and the bulb specification.

Series family	Years	Common models	Cab types	Lighting era
30 series	1970s	1030, 1130, 2030, 2130, 3130, 4030	SG2, MC1, CC2, Duncan, Super Duncan, OPU	Sealed beam, halogen, single work lamp
40 series	1979 to late 1980s	1040, 1640, 2040, 2140, 3140, 4040	SG2	Halogen H4, dual roof lamps
50 series	Late 1980s to early 1990s	1850, 2650, 3350, 3650	SG2	Halogen, factory-fit roof work lamps
6000/7000/8000	1992 to 2002	6100, 6610, 7710, 8400	TLS / standard	Halogen, multi-lamp factory fit
6020/7020/8020	2002 to 2007	6320, 7820, 8420	CommandView	Halogen with LED option from 2005
6030/7030/8030	2007 to 2012	6630, 7730, 8330	CommandView II	Halogen and HID, partial LED
6R / 7R / 8R / 9R	2012 to present	6R 145, 7R 270, 8R 410, 9R 540	CommandView III/IV	Full LED option, CAN-bus
5E / 5M	2007 to present	5075E, 5085M, 5125R	Standard cab	Halogen, with LED option

Reading the Model Number

A John Deere model number identifies the series and gives a guide to size or power. On the modern range, the figure after the series letters is the rated engine power, so a 6R 250 is a 6R with around 250 hp. On the older four-digit numbers, the last two digits give the series generation and the first digits the model size within it: a 4040 and a 1640 are 40 series models, and an 8330 is an 8030 series model.

Reading the Cab

The cab type affects which roof and pillar lamps fit. Heritage cabs (SG2, MC1, CC2, Duncan, Super Duncan, OPU, LPU) differ in roof shape, door layout, and lamp mounting points, so confirm the cab from its maker plate or the tractor build record before ordering. For modern tractors, the cab is a CommandView type on the 6R/7R/8R/9R range.

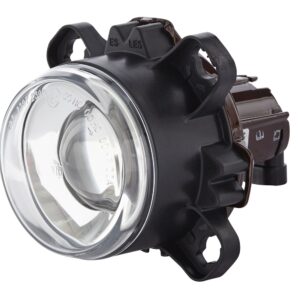

John Deere Headlamps by Series

A John Deere headlamp sits in the front grille or bonnet, faces forward, and illuminates the road or working path ahead. Bulb specification, lamp size, and mounting method vary by series.

Series	Headlamp type	Bulb code	LED upgrade option
30 series	Sealed beam round (177 mm or 145 mm)	Sealed beam unit	Direct LED replacement sealed beam
40 series	H4 halogen square or round	H4 60/55W	LED H4 plug-in
50 series	H4 halogen rectangular	H4 60/55W	LED H4 plug-in
6000/7000/8000	H4 or dual H7	H4 or H7	LED H4 or H7 plug-in, full unit available
6020/7020/8020	Twin H7 high/low	H7 55W	LED H7 plug-in, full LED unit
6030/7030/8030	H7 high/low + DRL	H7 55W + W21W	Full LED unit recommended
6R / 7R / 8R / 9R	LED matrix or projector	OEM LED only	Already LED
5E / 5M	H4 halogen	H4 60/55W	LED H4 plug-in

30 Series and Earlier Headlamps

A 30 series John Deere uses round sealed beam headlamps in 177 mm (7 inch) or 145 mm (5.75 inch) diameter, depending on the model. The sealed beam unit replaces as a complete assembly because the bulb and reflector form a single sealed glass envelope. Modern LED replacements that match the sealed beam form factor drop into the original mounting bracket without modification.

40 to 50 Series Headlamps

40 and 50 series headlamps moved to H4 halogen bulbs in separate housings. The H4 bulb is a 60/55W dual-filament unit. Replacement is a 5-minute job: release the bulb retainer clip, withdraw the old bulb without touching the glass, fit the new bulb, refit the clip. LED H4 replacements drop into the same housing for plug-and-play LED upgrade. The full halogen-to-LED process is covered in the halogen to LED upgrade guide.

6R, 7R, 8R, 9R Headlamps

Modern series tractors fit factory LED headlamps as standard or as a high-spec option. The lamp is a complete sealed unit with its own driver electronics. Replacement comes only as a full unit through John Deere or as an aftermarket equivalent matched to the same connector, current draw, and beam pattern. Aftermarket LED units must carry an E-mark for road use.

John Deere Work Lights by Series

A John Deere work light is a high-output lamp aimed at the working area around the tractor. Standard fitment varies from 2 lamps on a basic heritage tractor to 16 or more on a current 8R or 9R fitted with the full work lamp package.

30 to 50 Series Work Lights

Heritage John Deere tractors typically carry 2 to 4 work lamps factory-fitted, with mounting points for adding more. Standard fitment is 1 rear-facing roof lamp on the cab and 1 forward-facing roof lamp. SG2 cabs have 4 fixed work lamp positions on the corners of the cab roof. Most heritage work lamps are 55W H3 halogen units. LED replacement units fit the same 4-bolt mounting pattern as the original halogen lamps for direct upgrade.

6000/7000/8000 Series Work Lights

The 6000, 7000, and 8000 series increased the standard work lamp count to 6, with optional packages adding more. Lamps fit the 4 cab roof corners, the front grille, and the rear cab pillars. Bulb specification: 55W H3 or 70W H9 depending on lamp position.

6R / 7R / 8R / 9R Work Lights

Modern John Deere tractors can carry a large factory work lamp package, and a fully optioned 8R carries well over a dozen work lamps. The factory-fit lamps are LED units. Replacement is a full-unit swap because the lamps integrate with the CAN-bus to report status to the dashboard. Aftermarket LED replacements must include CAN-bus emulation to avoid “lamp out” warnings.

Common Work Lamp Mounting Positions

A John Deere work lamp fits in 6 standard positions, in order of factory and aftermarket popularity.

1. Cab roof front corners (2 lamps)
2. Cab roof rear corners (2 lamps)
3. Cab roof apex (1 to 4 lamps for high beam work)
4. A-pillar (1 each side)
5. Front grille (2 lamps)
6. Rear cab pillar facing rear (2 lamps)

The choice of where to fit additional work lamps depends on the task. Ploughing at night needs strong front-and-side coverage. Combine offloading at first light needs strong rear coverage. Loader work needs A-pillar and roof-front coverage. For the broader work-light selection process, see tractor work lights.

John Deere Cab Lights and Beacons

A John Deere cab light is an interior lamp inside the operator cab. A John Deere beacon is an amber rotating or flashing warning light fitted to the cab roof or the tractor body for road use.

Interior Cab Lights

Standard interior fitment is 1 dome lamp in the cab roof centre and 1 spot/reading lamp above the operator. Bulb codes vary: heritage tractors use festoon or BA15s bulbs at 5W to 10W; modern tractors use LED units integrated into the cab roof headlining. Replacement on heritage tractors is a quick festoon swap. Replacement on modern tractors requires a complete light unit through the dealer.

Roof Beacons

Every John Deere tractor used on an Irish public road must have a flashing amber beacon fitted and switched on, a requirement since 1 January 2016. Irish rules ask for it on the roof where possible, on the centre line of the tractor, with no part of the lit surface lower than 1.27 m from the ground. The beacon mounts through a DIN pole, a flexi-DIN pole, or a magnetic base. For the regulatory framework, see ECE R65 beacons. For portable options, see magnetic beacons. Most heritage John Deeres need a retro-fit beacon mount because factory beacon fitment was rare before the 6000 series. Modern John Deeres carry a factory DIN socket on the cab roof for direct beacon mounting.

Roof-Mounted Warning Bars

A John Deere working as a wide vehicle, slow-moving haulage tractor, or escort often fits more than a single beacon. A roof-mounted warning bar (300 to 1,200 mm wide) gives 360-degree visibility with multiple LED modules. The bar mounts on a flexi-DIN pole or directly to the cab roof through 2 to 4 bolts. Roof-mount warning bars are a common fit for contractor tractors out on Irish roads every day.

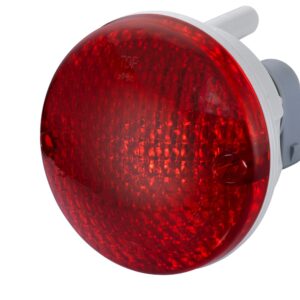

John Deere Rear Lights and Tail Lamps

A John Deere rear light is a tail lamp, indicator, brake light, or number plate light fitted to the rear of the tractor for road use. The fitment changes by series.

30 to 50 Series Rear Lights

Heritage John Deeres fit a single rear tail lamp cluster on each rear fender, containing tail/brake bulbs and indicator. The bulb codes are typically P21W (brake), R5W (tail), and PY21W (indicator). Replacement bulbs are standard universal items, available as halogen or LED.

6000/7000/8000 Series Rear Lights

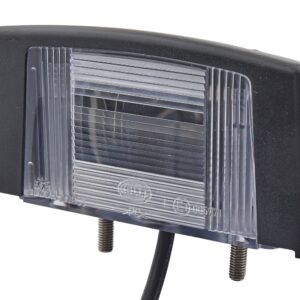

Mid-era John Deeres added a rear-mounted number plate light, separate fog light option, and reflectors to the rear cluster. Bulb codes match the heritage range with the addition of W5W for the number plate.

6R / 7R / 8R / 9R Rear Lights

Modern series tractors fit full LED rear clusters integrated into the cab rear panel or fender. The cluster combines tail, brake, indicator, fog, and reverse functions into a single sealed unit. Replacement is a full-cluster swap. Aftermarket LED rear clusters that match the John Deere connector and beam pattern provide a cheaper alternative when the OEM cluster fails.

For the universal rear lighting context, see tractor tail lights and rear brake light bulbs.

LED Upgrades for John Deere Tractors

A John Deere LED upgrade replaces halogen, sealed beam, or HID lamps with LED equivalents. The upgrade case stacks up clearly on heritage and mid-era John Deeres. Modern John Deeres are already LED-fitted from factory.

Heritage 30 to 50 Series LED Upgrade

The simplest upgrade path: plug-and-play LED bulbs in existing housings. H4, H3, BA15s, P21W, and W5W LED replacements all drop into the original sockets. Cost: about €10 to €35 per bulb. Time per bulb: 5 minutes. The full process and cost-benefit detail sits in the halogen to LED upgrade guide.

Mid-Era 6000/7000/8000 Series LED Upgrade

Mid-era tractors benefit most from a full-unit LED replacement on the work lamps because the original halogen units run hot and fail under PTO vibration. LED work lamp units bolt to the same 4-bolt pattern, draw much less current, and produce considerably more usable light. Headlamp LED upgrade is also straightforward: H7 LED bulbs or full LED headlamp units fit the existing housings.

6R / 7R / 8R / 9R LED Upgrade

Modern John Deeres are LED from factory. The upgrade case becomes a replacement case: when an OEM lamp fails, the choice is a like-for-like OEM replacement or an aftermarket LED unit at lower cost. Aftermarket replacement units must include CAN-bus emulation to avoid dashboard fault codes.

CAN-Bus Considerations

On newer John Deere tractors where the electronics monitor lamp current draw to detect bulb failures, an LED draws less current than the halogen it replaces, which the system can read as “bulb out”. The fix is a CAN-bus-compatible LED bulb (with internal current emulation), an external load resistor in parallel with each LED, or an electronic flasher relay for indicator LEDs. Without these fixes, the dashboard shows a fault and the indicator hyperflashes.

OEM vs Aftermarket John Deere Lights

A John Deere replacement lamp comes from one of 2 sources: an OEM (original equipment manufacturer) part through the John Deere dealer, or an aftermarket part from an independent supplier. Both are valid choices in different situations.

Factor	OEM John Deere	Aftermarket
Cost	High (full RRP)	Low to medium
Lead time	1 to 14 days through dealer	1 to 5 days
Connector match	Exact	Usually exact, occasionally needs adapter
CAN-bus compatibility	Built-in	Needs to be specified
Warranty	Full John Deere warranty	Aftermarket warranty (1 to 5 years typical)
Resale impact	Maintains “all-OEM” provenance	Slight reduction on collector models
Build quality	Consistent OEM spec	Varies by manufacturer

When OEM Wins

A John Deere still under factory warranty is simplest to keep on OEM lamps, which avoids any argument over warranty cover. A John Deere being sold to a JD-loyal buyer (or a collector model) holds value better with all-OEM components. A modern 6R, 7R, 8R, or 9R with multiple CAN-bus integration points has fewer compatibility issues with OEM than with cheap aftermarket lamps.

When Aftermarket Wins

A heritage John Deere out of warranty saves 50% to 80% on light parts by going aftermarket without any meaningful downside. A working tractor where the lights are consumables and frequent replacements are expected justifies aftermarket on cost grounds alone. An LED upgrade often goes aftermarket because OEM LED upgrade kits did not exist for many older series.

For the broader buying decision, the OEM vs aftermarket comparison covers the full framework.

John Deere Lighting Buying Checklist

Use this checklist when buying replacement or upgrade lamps for any John Deere tractor.

• Series and model number confirmed (e.g. 6R 145, 4040, 8330)
• Cab type identified for heritage tractors (SG2, MC1, CC2, Duncan, OPU, LPU)
• Original lamp position photographed before removal
• Bulb type or lamp connector identified before ordering
• OEM vs aftermarket decision made for each lamp
• CAN-bus compatibility checked on newer tractors
• Voltage matched (12V on most John Deeres; 24V on some specialist machines)
• E-mark checked on obligatory road lamps (headlamps, rear lamps, indicators)
• LED upgrade considered alongside any halogen replacement
• Beacon and warning light fitment checked against tractor lighting regulations
