Valtra Tractor Lights: Complete Lighting Compatibility Guide

How Valtra Tractor Lighting Works

A Valtra tractor lighting system is the network of lamps, wiring looms, switches, and electronic control modules fitted to a Valtra tractor for road, field, and yard use. The system splits into 5 functional categories common to every modern AGCO brand: front headlamps for road and forward visibility, work lamps for fieldwork, cab lighting for interior comfort, beacons for road-legal warning, and rear clusters for tail, brake, indicator, and reverse functions.

Valtra is the Finnish tractor brand within AGCO Corporation, founded as Valmet in 1951 and rebadged as Valtra in 2001. The brand sits alongside Fendt, Massey Ferguson, and Challenger within AGCO. Valtra is known for its wide choice of factory configurations, including 4 specification levels (HiTech, Active, Versu, Direct), reverse-drive capability on TwinTrac variants, and customer-selected paint colours. This configurability extends to lighting: a single Valtra series can leave the Suolahti factory with very different work lamp packages depending on customer specification.

Three lighting eras define the brand’s history. The Valmet era runs from the 1960s through 2000 with sealed-beam and early halogen lighting on the 02, 05, 6000, and 8000 series. The early Valtra era runs from 2001 through 2012 covering generations 0, 1, and 2 of the A, M, N, S, T ranges with H4 and H7 halogen, optional HID, and 4 to 8 work lamps. The modern era runs from 2012 to date covering Gen 3 facelift, Gen 4 (2014 launch), and Gen 5 (2020 launch) with factory LED packages, SmartTouch CAN-bus integration, and large LED work lamp packages on the top trims.

Identifying Your Valtra Generation

A Valtra series identifier appears on the side bonnet decal, the chassis number plate (mounted on the right-hand front frame rail behind the wheel arch), and the operator’s manual. The series letter and generation together determine lighting fitment.

Series	Type	Years	Common models
A series	Compact utility	2003 to present	A75, A95, A105, A115
G series	Mid utility (new 2020)	2020 to present	G105, G125, G135
N series	Mid-range	2004 to present	N104, N114, N134, N154, N174
T series	Mid-large	2004 to present	T144, T154, T174, T194, T214, T234, T254
Q series	High-power (new 2022)	2022 to present	Q225, Q245, Q265, Q285, Q305
S series	Heavy-duty	2008 to 2020	S233, S263, S293, S323, S353, S374, S394
Valmet 02 series	Heritage	1970s	Valmet 502, 702, 902
Valmet 05 series	Heritage	1980s	305, 405, 505, 605, 705, 805, 905
Valmet 6000 / 8000 series	Late heritage	1992 to 2001	6100, 6300, 6400, 8050, 8150, 8450

Reading the Model Number

A modern Valtra model number gives a rough guide to engine power: a T234 is a T series of around 230 hp or more, and an N174 an N series of around 170 hp. Heritage Valmet model numbers use a different scheme. The chassis plate confirms exact build year, generation, and lighting specification.

Generation Cut-Offs

A Valtra generation matters more for lighting fitment than the model number alone. The N and T series have run through several generations: the fourth generation arrived in 2014 and the fifth generation from 2020, alongside the new G series. Earlier generations used H4 or H7 halogen headlamps, some with HID options, while later generations offer factory LED packages, with LED standard on many models. Headlamp units and connectors changed between generations and facelifts, so confirm the generation from the chassis plate or dealer records before ordering.

Identifying Gen 3 Non-Facelift vs Gen 3 Facelift

A Gen 3 non-facelift Valtra and a Gen 3 facelift Valtra share the same chassis but use different headlamp units, so a lamp or retrofit kit made for one will not necessarily fit the other. Aftermarket LED retrofit headlamps are made to suit specific housings, so match the kit to the generation and facelift before ordering.

Valtra Headlamps by Series

A Valtra headlamp sits in the bonnet face above the grille on all modern Valtra series. Bulb specification and lamp size vary by series and generation.

Series / generation	Headlamp type	Bulb code	LED upgrade option
A series (all generations)	Twin H4 in plastic housing	H4 60/55W	LED H4 plug-in
G series	Factory LED or H7	OEM LED / H7	Already LED on most trims
N series Gen 0 to 3 non-facelift	Twin H7	H7 55W	LED retrofit headlamp
N series Gen 3 facelift, 4, 5	LED or H7	OEM LED / H7	LED retrofit headlamp
T series Gen 0 to 3 non-facelift	Twin H7 high/low	H7 55W	LED retrofit headlamp
T series Gen 3 facelift, 4, 5	LED or H7	OEM LED / H7	LED retrofit headlamp
Q series	Factory LED	OEM LED	Already LED
S series	Twin H7 or HID	H7 / D2S HID	LED H7 plug-in

Valtra N and T Series Gen 0 to 3 Non-Facelift Headlamps

A Valtra N or T series tractor from the earlier generations carries twin H7 55W halogen bulbs in plastic housings. Plug-in LED H7 bulbs or a complete aftermarket LED headlamp unit are the usual upgrades. Choose a unit that is E-marked for road use, fits the original connector, and carries R10 EMC approval to avoid radio and GPS interference. RSA guidance says LED bulbs are legal on the road only if they are type-approved, suit the headlamp and do not dazzle.

Valtra N and T Series Gen 3 Facelift, Gen 4, Gen 5 Headlamps

A later Valtra N or T series tractor carries a redesigned headlamp unit. Aftermarket LED units are made to suit this housing; check the fit for the exact generation before ordering. CAN-bus monitoring on newer generations may need a CAN-bus compatible LED to prevent the SmartTouch bulb-out warning.

Valtra Q Series Headlamps

A Valtra Q series tractor (Q225 through Q305) carries factory LED headlamps as standard. The LED matrix is a sealed assembly with a CAN-bus connection. Aftermarket retrofit is unnecessary and not recommended on the Q series because the factory unit is calibrated to SmartTouch and any swap risks fault codes. Replacement uses the OEM AGCO part, ordered through the dealer.

Valtra A Series Headlamps

A Valtra A series tractor carries simpler H4 60/55W dual-filament halogen bulbs in compact round housings. The A series is the entry tractor in the Valtra range and uses utility-class lighting throughout. Plug-in LED H4 replacements are widely available at €60 to €115 per pair.

Valtra Work Lamps and Roof Bars

A Valtra work lamp illuminates a specific task area on the tractor. The factory specification varies widely, from a basic pair of lamps on an A series to a large LED package on a top-spec T or Q series, so count and photograph the lamps fitted before ordering replacements.

Roof Bar Fitment

A Valtra roof bar sits on the cab roof above the windscreen. The factory roof bar option on T, Q, and S series carries 4 to 8 LED work lamps with integrated wiring through the cab roof. Aftermarket roof bars retrofit to earlier N and T generations using bolt-on brackets sized for the Valtra cab profile. Total roof bar load on a fully-populated 8-lamp setup is approximately 320W (8 x 40W LED), which is usually within the alternator capacity on these tractors, but check the alternator rating and fit a relay and fuse. The how to mount work lights guide covers the install process.

Valtra Beacons and Warning Lights

A Valtra beacon is a flashing amber warning light fitted to the cab roof. In Ireland every agricultural tractor must have one fitted and switched on whenever it is on a public road, whatever its speed or the type of road. Most current Valtra cabs have a factory beacon socket on the cab roof; check its position on the tractor before ordering a pole.

Modern LED beacon replacements fit the same DIN socket on N, T, Q, and S series, run cooler, draw 1 to 2 amps instead of 4 to 5 amps for halogen, and last 30,000 hours instead of 1,000 hours. A magnetic beacon for occasional road use sits on the cab roof through a steel mounting plate. The magnetic beacons guide covers portable options.

TwinTrac Reverse-Drive Beacon Position

A Valtra TwinTrac variant (available on N, T, and S series) lets the operator drive from a reversed seat for backwards-facing work. The road lighting rules do not change, but a single beacon may be hidden by the cab or an implement when working in reverse, so many TwinTrac operators fit 2 beacons (front and rear roof corners) to make sure the warning is seen from every direction.

Valtra Rear Lamps, Indicators, and Number Plate Lights

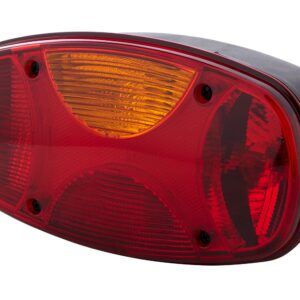

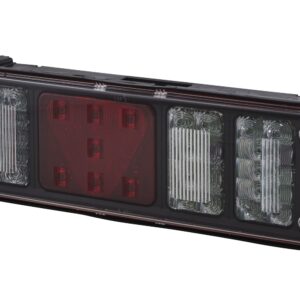

A Valtra rear cluster combines tail, brake, indicator, and reverse functions in a single sealed unit. The unit type varies by generation.

Series / generation	Rear cluster	Bulb codes
A series	Combined rectangular bulb cluster	P21/5W, PY21W
G series	LED cluster	OEM LED
N / T Gen 0 to 3 non-facelift	Bulb cluster	P21/5W, PY21W, P21W
N / T Gen 3 facelift, 4, 5	LED cluster on Versu/Direct; bulb on HiTech/Active	OEM LED / P21/5W
Q series	Full LED cluster	OEM LED
S series	LED cluster on top trim; bulb on entry	OEM LED / P21/5W
Heritage Valmet	Round single bulb cluster	P21W, R5W

Number Plate Lights

A Valtra number plate light sits at the rear of the tractor above or beside the plate. Older models commonly use a small festoon or capless bulb; check the bulb in the lamp before ordering, as LED replacements are available for both. The tractor number plate lights guide covers replacement procedure.

CAN-Bus Indicator Compatibility

A Valtra Gen 4 or Gen 5 SmartTouch tractor uses CAN-bus monitoring on the indicator circuit. A plain LED PY21W bulb triggers a hyperflash because the LED draws too little current for SmartTouch to detect. A CAN-bus compatible LED PY21W bulb includes a built-in load resistor that mimics the original halogen current draw, which prevents the hyperflash and the SmartTouch warning.

Heritage Valmet 200 to 8000 Series Lighting

A Valmet 502, 702, 805, 6300, 8050, or 8450 carries simpler lighting than any modern Valtra. The headlamps are typically round sealed-beam units on early models or round H4 halogen units on later models. The work lamps are single H3 55W halogen on stalk mounts. The rear cluster is a basic bulb arrangement with separate stop, tail, and indicator functions.

Sealed Beam Replacement on Heritage Valmet

A Valmet 502 or 702 with original sealed-beam headlamps accepts a 7-inch round LED sealed-beam replacement directly in the original bezel. The H4 plug on the LED unit connects to the original loom without modification. Output rises substantially over the original sealed beam. Check that the replacement is E-marked for road use and matches the bezel size and mounting pattern.

Adding LED Work Lamps to Heritage Valmet

A Valmet 6300 or 8050 left the factory with 1 or 2 H3 halogen work lamps. Adding 4 extra LED work lamps requires a relay, an inline fuse, a switch panel, and a wiring loom routed from the battery through to the new lamp positions. The total additional load for 4 x 40W LED lamps is 160W, or about 11 to 13A, which most heritage Valmet alternators can supply, but check the alternator output before adding more.

Upgrading a Valtra from Halogen to LED

A Valtra halogen to LED upgrade replaces existing H4 or H7 bulbs with plug-in LED equivalents or full unit replacements. The upgrade improves visibility, reduces alternator load, and extends service interval from 500 to 1,000 hours (halogen) to 30,000 hours (LED).

Matching LED Retrofit Kits to the Generation

Aftermarket LED headlamp retrofit kits are made for specific Valtra housings. The wrong kit will not seat correctly in the housing, so generation identification is essential before ordering. The chassis plate confirms generation; if the chassis plate is missing or illegible, the front grille shape and headlamp surround pattern differentiate the generations.

CAN-Bus and SmartTouch Compatibility

A Gen 4 or Gen 5 Valtra uses CAN-bus monitoring through the SmartTouch system. A plain LED bulb triggers a bulb-out warning on the SmartTouch display. A CAN-bus compatible LED bulb prevents the warning. Ask the supplier whether a unit has been tested on the tractor before buying.

EMC and AutoGuide Considerations

A Valtra T, Q, or S series tractor with AutoGuide GPS steering relies on a clean GPS signal. A poor-quality LED bulb generates radio frequency interference that disrupts AutoGuide accuracy. The LED lights and GPS interference guide explains the EMC requirements (R10 approval, RFI suppression) that any retrofit LED on a GPS-equipped Valtra must meet.

AGCO Cross-Reference with Massey Ferguson and Fendt

Valtra shares some components with its AGCO sister brands, but lamp parts are not always interchangeable. Check the part number on the lamp, or the connector and mounting pattern, before assuming a Massey Ferguson or Fendt lamp will fit.

The Massey Ferguson tractor lights and Fendt tractor lights guides cover the equivalent fitment in detail.

Where to Buy Valtra-Compatible Lights in Ireland

A Valtra-compatible lamp is available through the Valtra main dealer network, through specialist agricultural lighting suppliers, and through online retailers. Agri Lighting holds stock of LED work lamps, beacons, rear clusters, and headlamp bulbs that fit the A, G, N, T, Q, and S series as well as the heritage Valmet 200 through 8000 ranges. Orders ship from Lincolnshire, with free delivery to Ireland on orders over €150. For fitment advice, call +44 1522 440522 or email [email protected].

For the full range of fitment options across every major brand, see the tractor light fitment guide. For technology choices, see the halogen to LED upgrade guide. Browse the full range of tractor headlights and work lights for Valtra fitment options.
